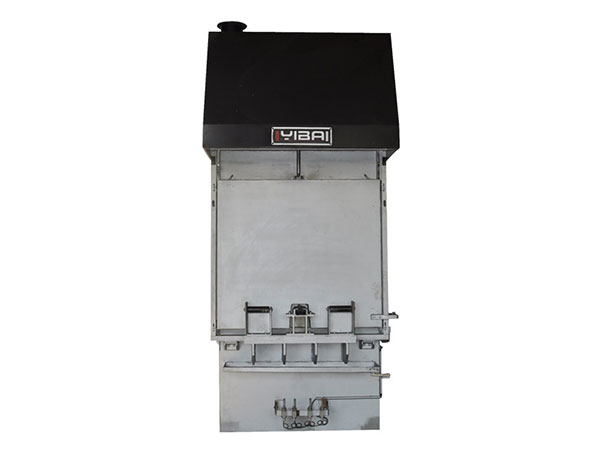

HT Series High - Temperature Tempering furnace

1. Introduction

In the realm of materials processing and Heat treatment, high - temperature tempering furnaces play a pivotal role in enhancing the mechanical properties of various materials. The HT series high - temperature tempering furnaces are designed to meet the exacting demands of industries such as aerospace, automotive, and metalworking, where precision and reliability in heat treatment are crucial. These furnaces are engineered to provide uniform heating, precise temperature control, and efficient operation, making them an ideal choice for applications that require the modification of material properties through high - temperature tempering.

2. Working Principles

2.1 Heat Generation and Transfer

HT series furnaces typically utilize electric heating elements, often made of materials like molybdenum disilicide (MoSi₂) for their ability to withstand high temperatures. These elements convert electrical energy into heat through the Joule heating effect. The heat is then transferred to the furnace chamber, where the workpieces are placed, via radiation, convection, and conduction. Radiation is the dominant mode of heat transfer at high temperatures, with the hot heating elements emitting thermal radiation that is absorbed by the walls of the furnace chamber and the workpieces themselves. Convection also plays a role, as the heated air or gas within the furnace circulates, distributing heat more evenly. Conduction ensures that heat is transferred through the solid materials of the furnace components and the workpieces.

2.2 Temperature Control

Precise temperature control is a hallmark of the HT series. Advanced temperature controllers are employed, which can be programmed to achieve and maintain specific temperature profiles. These controllers use feedback from thermocouples or other temperature sensors placed strategically within the furnace chamber. The sensors continuously monitor the temperature and send signals to the controller. If the measured temperature deviates from the set - point, the controller adjusts the power supplied to the heating elements. For example, if the temperature is lower than the set - point, the controller increases the power to the heating elements, and vice versa. Some models may also feature multi - zone temperature control, allowing for different temperature settings in different areas of the furnace chamber. This is particularly useful when processing workpieces with varying heat treatment requirements or complex geometries.

2.3 Atmosphere Control (Optional)

In certain applications, such as heat - treating materials that are prone to oxidation or decarburization, an atmosphere control system can be incorporated into the HT series furnaces. This system allows for the introduction of a protective gas, such as nitrogen, argon, or a mixture of gases, into the furnace chamber. The protective gas displaces the oxygen - containing air, creating an inert or reducing atmosphere. In an inert atmosphere, oxidation of the workpiece is minimized, which is crucial for maintaining the surface quality and integrity of the material. In a reducing atmosphere, any existing oxides on the workpiece surface can be reduced, further enhancing the material's properties. The flow rate and composition of the protective gas can be precisely controlled to meet the specific needs of the heat - treatment process.

3. Structural Components

3.1 Furnace Chamber

The furnace chamber is the core component where the tempering process takes place. It is constructed from high - quality refractory materials, which are selected for their excellent heat - resistance, low thermal conductivity, and high mechanical strength. Materials such as high - alumina refractory bricks or ceramic fiber insulation are commonly used. High - alumina bricks offer good resistance to high temperatures and chemical corrosion, while ceramic fiber insulation provides excellent thermal insulation, reducing heat loss from the furnace chamber. The chamber is designed to be air - tight to facilitate atmosphere control if required. It also has provisions for loading and unloading the workpieces, such as doors or hatches that are equipped with reliable sealing mechanisms to prevent heat loss and maintain the integrity of the furnace atmosphere.

3.2 Heating Elements

As mentioned earlier, the heating elements in HT series furnaces are typically made of MoSi₂. These elements are designed to have a long service life even under the harsh conditions of high - temperature operation. They are mounted in a way that ensures uniform heat distribution within the furnace chamber. For example, they may be arranged in a zig - zag pattern or in a configuration that maximizes their surface area in contact with the furnace chamber. The heating elements are also designed to be easily replaceable in case of failure. This is important for minimizing downtime and ensuring the continuous operation of the furnace.

3.3 Temperature - Sensing and Control System

The temperature - sensing and control system consists of thermocouples or other temperature sensors, a temperature controller, and associated wiring. Thermocouples are commonly used due to their accuracy and reliability in measuring high temperatures. They are made of two different metal wires joined at one end, and when there is a temperature difference between the two ends, a voltage is generated. This voltage is proportional to the temperature and is used by the controller to determine the actual temperature within the furnace chamber. The temperature controller, which can be a digital or analog device, receives the signal from the thermocouple and compares it to the pre - programmed set - point. Based on this comparison, it adjusts the power to the heating elements to maintain the desired temperature.

3.4 Door and Sealing Mechanisms

The furnace door is an important component that allows for the loading and unloading of workpieces. In the HT series, the doors are designed to be easy to operate and provide a tight seal when closed. They may be hinged or sliding, depending on the furnace design. The sealing mechanisms are crucial for preventing heat loss and maintaining the furnace atmosphere. Labyrinth seals, which consist of a series of channels and barriers, are often used to minimize air leakage. Additionally, gaskets made of high - temperature - resistant materials are used to further enhance the seal. Some models may also have a door - interlock system, which ensures that the power to the heating elements is cut off when the door is opened, for safety reasons.

3.5 Support and Frame Structure

The furnace is supported by a sturdy frame structure, which is designed to withstand the weight of the furnace components and the workpieces. The frame is typically made of steel and is engineered to provide stability and rigidity. It also serves as a mounting point for other components such as the heating elements, temperature sensors, and control panels. The support structure may be designed to be freestanding or may be integrated into a larger production line, depending on the application.

4. Applications

4.1 Aerospace Industry

In the aerospace sector, the HT series high - temperature tempering furnaces are used for heat - treating critical components such as turbine blades, landing gear parts, and structural elements. Turbine blades, for example, need to withstand extremely high temperatures and mechanical stresses during operation. High - temperature tempering helps to improve their mechanical properties, such as strength, toughness, and fatigue resistance. By subjecting the blades to precise temperature profiles in the HT series furnaces, manufacturers can ensure that the blades have the necessary properties to operate reliably in the harsh environment of a jet engine. Landing gear parts also require high - temperature tempering to enhance their strength and durability, as they are subjected to significant forces during takeoff and landing.

4.2 Automotive Industry

The automotive industry relies on the HT series furnaces for heat - treating engine components, transmission parts, and suspension components. Engine components such as crankshafts, camshafts, and connecting rods are heat - treated to improve their strength and wear resistance. High - temperature tempering helps to relieve internal stresses generated during the manufacturing process and optimize the microstructure of the materials, resulting in components that can withstand the high - stress conditions of engine operation. Transmission parts, such as gears and shafts, also benefit from high - temperature tempering, as it improves their fatigue resistance and dimensional stability. In the case of suspension components, high - temperature tempering can enhance their toughness and durability, ensuring a smooth and safe ride.

4.3 Metalworking and Toolmaking

In metalworking and toolmaking, the HT series furnaces are used for heat - treating cutting tools, dies, and molds. Cutting tools, such as drills, milling cutters, and lathe tools, need to have a high hardness and wear resistance to effectively cut through various materials. High - temperature tempering can help to optimize the balance between hardness and toughness, ensuring that the cutting tools have a long service life. Dies and molds, which are used in processes such as forging, casting, and stamping, also require heat treatment to improve their mechanical properties. High - temperature tempering can enhance their strength, wear resistance, and dimensional stability, allowing them to produce high - quality parts with consistent accuracy.

4.4 Electronics and Semiconductor Industry

Although not as common as in the previous industries, the HT series furnaces can also find applications in the electronics and semiconductor industry. For example, they may be used for heat - treating certain electronic components or for processes related to semiconductor manufacturing. In some cases, high - temperature tempering can be used to relieve stresses in electronic packaging materials or to modify the properties of semiconductor materials to improve their performance. However, the requirements in this industry are often very precise, and the HT series furnaces may need to be equipped with additional features such as ultra - precise temperature control and cleanroom - compatible designs to meet these requirements.

5. Advantages

5.1 Precise Temperature Control

The ability to achieve and maintain precise temperature profiles is one of the key advantages of the HT series furnaces. This ensures consistent and repeatable heat - treatment results, which is crucial for industries where the quality and performance of materials are highly dependent on the accuracy of the heat - treatment process. The advanced temperature control systems can maintain the temperature within a very narrow tolerance range, typically within ±1°C or even better in some high - end models.

5.2 Uniform Heating

The design of the HT series furnaces, including the arrangement of the heating elements and the construction of the furnace chamber, ensures uniform heating throughout the chamber. This is important for ensuring that all parts of the workpiece are subjected to the same temperature, resulting in consistent material properties across the entire component. Uniform heating also helps to prevent issues such as warping, cracking, or uneven hardness in the heat - treated workpieces.

5.3 High - Temperature Capability

With maximum operating temperatures often reaching up to 1800°C or even higher in some specialized models, the HT series furnaces can handle a wide range of materials and heat - treatment processes. This high - temperature capability is essential for industries that work with high - temperature - resistant alloys, ceramics, and other materials that require extreme heat treatment to achieve the desired properties.

5.4 Energy Efficiency

Despite operating at high temperatures, many HT series furnaces are designed with energy - efficiency in mind. The use of high - quality insulation materials helps to reduce heat loss, and the advanced control systems can optimize the power consumption based on the heating requirements. Some models may also feature energy - saving modes or the ability to adjust the heating rate and power levels according to the specific heat - treatment cycle, resulting in lower energy costs over the long term.

5.5 Durability and Reliability

The HT series furnaces are built with high - quality components and materials, ensuring long - term durability and reliable operation. The refractory materials used in the furnace chamber can withstand repeated heating and cooling cycles without significant degradation. The heating elements are designed to have a long service life, and the overall construction of the furnace is robust enough to withstand the rigors of industrial use. This reliability is important for minimizing downtime and ensuring continuous production in manufacturing facilities.

6. Challenges and Considerations

6.1 High Initial Cost

The purchase of an HT series high - temperature tempering furnace represents a significant investment. The cost of the furnace itself, along with associated equipment such as temperature controllers, atmosphere control systems (if required), and installation costs, can be quite high. This high initial cost may be a barrier for some small - to - medium - sized enterprises or for those on a tight budget. However, it is important to consider the long - term benefits in terms of improved product quality, reduced waste, and increased productivity that the furnace can bring.

6.2 Energy Consumption

Operating a high - temperature furnace consumes a substantial amount of energy. The continuous heating of the furnace chamber to high temperatures requires a significant electrical power supply. This can result in high energy costs, especially for facilities that operate the furnace for extended periods. To mitigate this, some manufacturers are exploring ways to improve the energy efficiency of the furnaces, as mentioned earlier, but energy consumption remains a consideration for users.

6.3 Maintenance and Service Requirements

The HT series furnaces require regular maintenance to ensure optimal performance and long - term reliability. This includes tasks such as inspecting and replacing heating elements when they show signs of wear, checking and maintaining the integrity of the furnace insulation, and calibrating the temperature - sensing and control systems. Maintenance may also involve cleaning the furnace chamber to remove any residue or contaminants that could affect the heat - treatment process. Additionally, in the case of furnaces with atmosphere control systems, the gas lines, valves, and other components need to be regularly checked and maintained. The need for regular maintenance and the associated costs should be factored into the overall cost of ownership of the furnace.

6.4 Safety Considerations

Working with high - temperature furnaces poses certain safety risks. The extreme temperatures involved can cause burns if proper safety precautions are not taken. There is also a risk of electrical hazards, especially when dealing with the electrical components of the furnace. Additionally, if an atmosphere control system is used, there may be risks associated with the handling of potentially hazardous gases. To address these safety concerns, manufacturers typically provide detailed safety instructions and may equip the furnaces with safety features such as door - interlock systems, over - temperature protection, and emergency stop buttons. Operators must be trained to follow these safety procedures to minimize the risk of accidents.

7. Future Trends

7.1 Integration of Smart Technologies

The future of the HT series high - temperature tempering furnaces is likely to see the integration of smart technologies. This may include the use of the Internet of Things (IoT) to enable remote monitoring and control of the furnace. Operators could potentially monitor the temperature, heating element status, and other parameters from a remote location and make adjustments as needed. Artificial intelligence (AI) and machine learning algorithms could also be applied to optimize the heat - treatment process. For example, AI could analyze data from the furnace sensors to predict maintenance needs, adjust the temperature profile based on the characteristics of the workpiece, or improve the energy efficiency of the furnace.

7.2 Development of Advanced Materials

Ongoing research and development in materials science are likely to lead to the development of new materials for use in the construction of HT series furnaces. These materials may offer even better heat - resistance, lower thermal conductivity, and improved mechanical properties. For example, new refractory materials or advanced insulation materials could be developed that further enhance the energy efficiency and durability of the furnace. Additionally, new materials may be developed for the heating elements that can operate at even higher temperatures or have a longer service life.

7.3 Improved Energy Efficiency

As concerns about energy consumption and environmental impact continue to grow, there will be a greater emphasis on improving the energy efficiency of HT series furnaces. This may involve the development of more efficient heating element designs, better insulation materials, and more intelligent control systems that can optimize the heating process based on real - time conditions. Some manufacturers may also explore alternative energy sources, such as solar or waste heat recovery, to power the furnaces.

7.4 Customization and Modularity

There is a growing trend towards customization and modularity in the design of high - temperature furnaces. Manufacturers may offer more options for customizing the furnace to meet the specific needs of different industries and applications. This could include the ability to choose the size and shape of the furnace chamber, the type of heating elements, the level of temperature control, and the inclusion of optional features such as atmosphere control systems. Modular designs may also be developed, allowing users to easily add or remove components as their needs change over time.

In conclusion, the HT series high - temperature tempering furnaces are essential equipment in industries that require precise and reliable heat treatment at high temperatures. Despite the challenges associated with their use, such as high initial cost and energy consumption, their advantages in terms of precise temperature control, uniform heating, and high - temperature capability make them a valuable asset. Looking to the future, technological advancements and the development of new materials are likely to further enhance the performance and capabilities of these furnaces, making them even more indispensable in the manufacturing and materials processing sectors.
