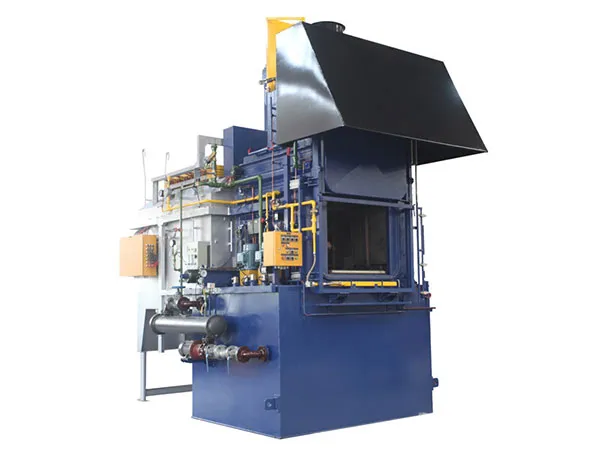

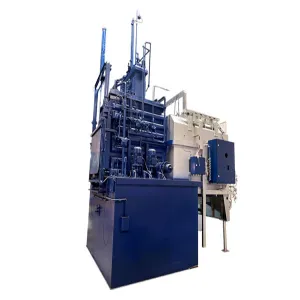

Multi-purpose furnace: A Versatile Powerhouse in Thermal Processing

1. Introduction

In the dynamic landscape of industrial manufacturing, research, and material processing, the multi-purpose furnace has emerged as a crucial piece of equipment. Unlike single - function furnaces, multi-purpose furnaces are designed to accommodate a wide range of thermal processes, offering flexibility and efficiency. From Heat treatment of metals and ceramics to synthesis of new materials, these furnaces play an indispensable role in diverse fields, providing a cost - effective and adaptable solution for various thermal processing needs.

2. Definition and Concept

A multi-purpose furnace is a thermal processing device engineered to perform multiple functions, such as annealing, quenching, tempering, sintering, melting, and calcination. It can operate under different atmospheres, including air, inert gases (like nitrogen and argon), and reducing or oxidizing gases. The key feature of a multi-purpose furnace is its ability to be reconfigured or adjusted to suit different processing requirements, making it suitable for a broad spectrum of applications in industries like automotive, aerospace, electronics, and research laboratories.

3. Working Principles

3.1 Heat Generation

Most multi-purpose furnaces use electrical resistance heating elements. Materials such as nickel - chromium (Ni - Cr) alloys, iron - chromium - aluminum (Fe - Cr - Al) alloys, or silicon carbide (SiC) are commonly employed as heating elements. When an electric current passes through these elements, they generate heat based on the Joule heating principle  is the time). In some cases, induction heating may also be used, especially for rapid heating or when working with conductive materials. Here, a high - frequency alternating magnetic field induces eddy currents in the workpiece, which in turn generate heat due to the material's electrical resistance.

3.2 Temperature Control

Precise temperature control is essential for the successful execution of various thermal processes. Multi-purpose furnaces are equipped with advanced temperature controllers, often based on programmable logic controllers (PLCs) or microprocessor - based systems. Thermocouples or other temperature sensors, such as resistance temperature detectors (RTDs), are strategically placed within the furnace chamber to monitor the temperature. The controller compares the measured temperature with the set - point temperature and adjusts the power supplied to the heating elements accordingly. Some furnaces also feature multi - zone temperature control, allowing for different temperature profiles within the same chamber, which is useful for processing large or complex - shaped workpieces.

3.3 Atmosphere Control

The ability to control the atmosphere inside the furnace is a distinguishing feature of multi-purpose furnaces. For processes that require an inert atmosphere to prevent oxidation (such as annealing of metals), gases like nitrogen or argon are introduced into the furnace chamber. In reducing atmosphere applications, gases like hydrogen or a mixture of hydrogen and nitrogen may be used to reduce metal oxides on the workpiece surface. Conversely, for oxidizing processes, air or oxygen - enriched gases can be supplied. The atmosphere is typically controlled by regulating the flow rate of the gases through mass flow controllers and ensuring proper sealing of the furnace chamber to maintain the desired gas composition.

4. Structural Components

4.1 Furnace Chamber

The furnace chamber is the core where the thermal processing occurs. It is constructed from high - quality refractory materials, such as ceramic fiberboards, high - alumina bricks, or silicon carbide refractories. These materials offer excellent heat resistance, low thermal conductivity, and high mechanical strength, enabling them to withstand high temperatures and thermal shocks. The chamber's size and shape can vary depending on the application, ranging from small chambers for laboratory - scale experiments to large industrial - sized chambers capable of accommodating bulky workpieces.

4.2 Heating System

As mentioned earlier, the heating system usually consists of heating elements and the associated electrical wiring and insulation. The heating elements are carefully arranged within the furnace chamber to ensure uniform heat distribution. In some cases, the heating elements may be removable or replaceable, facilitating maintenance and repair. Additionally, the heating system may include heat reflectors or baffles to direct the heat towards the workpiece and improve the efficiency of the heating process.

4.3 Temperature - Sensing and Control System

The temperature - sensing system comprises temperature sensors (thermocouples or RTDs) and the temperature controller. Thermocouples are commonly used due to their wide temperature range and relatively low cost. They generate a small voltage that is proportional to the temperature difference between their two junctions. The temperature controller receives the signal from the sensors, processes it, and sends commands to the power control unit to adjust the heating elements' power. Modern temperature - control systems often have features like programmable heating and cooling ramps, set - point tracking, and alarm functions to ensure safe and accurate operation.

4.4 Atmosphere - Control System

The atmosphere - control system includes gas storage tanks, regulators, mass flow controllers, and gas delivery pipes. Gas storage tanks hold the required gases, which are then regulated to the appropriate pressure and flow rate using regulators and mass flow controllers. The gases are delivered to the furnace chamber through pipes, and valves are used to control the flow and switching between different gases. To ensure the integrity of the atmosphere, the furnace chamber is sealed tightly, often with gaskets made of high - temperature - resistant materials.

4.5 Door and Loading Mechanisms

Furnaces are equipped with doors or hatches for loading and unloading workpieces. These doors are designed to be air - tight when closed to maintain the furnace atmosphere and prevent heat loss. Loading mechanisms can range from simple manual trays for small furnaces to complex automated conveyor systems for industrial - scale furnaces. In some cases, the loading mechanism may also be designed to allow for the introduction of workpieces into the furnace without significant disruption to the temperature or atmosphere inside.

5. Applications

5.1 Metal Heat Treatment

In the metalworking industry, multi-purpose furnaces are widely used for Heat treatment processes. Annealing, which involves heating the metal to a specific temperature and then cooling it slowly, is carried out to relieve internal stresses, improve ductility, and refine the grain structure. Quenching, followed by tempering, is used to increase the hardness and strength of metals. For example, in the production of automotive components like engine parts, gears, and axles, multi-purpose furnaces play a crucial role in ensuring the components have the desired mechanical properties.

5.2 Ceramic and Glass Processing

For ceramics, multi-purpose furnaces are used for sintering, a process that fuses ceramic particles together at high temperatures to form a dense and strong material. This is essential in the production of ceramic tiles, refractories, and advanced ceramic components for aerospace and electronics. In the glass industry, these furnaces can be used for processes such as annealing glass to remove internal stresses and for melting and shaping glass materials.

5.3 Electronics Manufacturing

In electronics, multi-purpose furnaces are employed for processes like the sintering of electronic pastes, annealing of semiconductor wafers, and the heat treatment of electronic packaging materials. Sintering of electronic pastes is used to bond components together, while annealing of semiconductor wafers helps to improve their electrical properties by reducing defects and improving crystal structure.

5.4 Research and Development

In research laboratories, multi-purpose furnaces are invaluable tools. Scientists can use them to conduct experiments on new materials, study the effects of different thermal processes on material properties, and develop innovative manufacturing techniques. For example, in the field of nanomaterials, researchers can use multi-purpose furnaces to synthesize and process nanoscale materials under controlled conditions.

5.5 Metallurgical Processes

Multi-purpose furnaces are also used in various metallurgical processes such as melting and refining of metals. They can be used to melt scrap metal for recycling or to refine metals by removing impurities through processes like oxidation or reduction in a controlled atmosphere.

6. Advantages

6.1 Versatility

The most significant advantage of a multi-purpose furnace is its ability to perform multiple functions. This eliminates the need for multiple single - function furnaces, saving space, reducing capital investment, and streamlining production processes. A single multi-purpose furnace can be quickly reconfigured to meet different processing requirements, making it highly adaptable to changing production needs.

6.2 Cost - Effectiveness

By combining multiple functions into one unit, multi-purpose furnaces offer cost savings in terms of equipment purchase, installation, and maintenance. Since fewer furnaces are required, there are also reduced costs associated with energy consumption, floor space, and labor for operation and maintenance.

6.3 Precision and Control

Modern multi-purpose furnaces are equipped with advanced control systems that offer precise temperature and atmosphere control. This precision ensures consistent and high - quality results in thermal processing, which is crucial for industries where product quality is of utmost importance. The ability to program complex heating and cooling cycles and control the atmosphere accurately allows for the optimization of processes to achieve the desired material properties.

6.4 Scalability

Many multi-purpose furnaces are designed with scalability in mind. They can be adjusted to handle different batch sizes, from small - scale laboratory experiments to large - scale industrial production. This scalability makes them suitable for businesses of all sizes, from startups conducting research and development to large - scale manufacturing companies.

7. Challenges

7.1 Complexity

The versatility of multi-purpose furnaces comes with increased complexity. Operating and maintaining such a furnace requires a higher level of technical expertise. Operators need to understand the different thermal processes, how to control the temperature and atmosphere for each process, and how to troubleshoot potential problems. This often necessitates extensive training, which can be time - consuming and costly.

7.2 Cost of Initial Investment

Although multi-purpose furnaces offer long - term cost savings, the initial investment can be substantial. The cost of the furnace itself, along with the associated control systems, atmosphere - control equipment, and installation, can be a significant financial burden for some businesses, especially small - to - medium - sized enterprises.

7.3 Compatibility and Process Optimization

Ensuring that the furnace is compatible with different materials and processes can be challenging. Each thermal process may have specific requirements for temperature, atmosphere, and heating rate, and optimizing the furnace for all these processes simultaneously can be difficult. Additionally, some materials may react with the furnace atmosphere or components, requiring careful selection of materials and process parameters to avoid unwanted side reactions.

7.4 Maintenance and Downtime

The complex nature of multi-purpose furnaces means that maintenance can be more involved compared to single - function furnaces. Regular maintenance is required to ensure the proper functioning of the heating elements, temperature sensors, atmosphere - control systems, and other components. Any breakdown or malfunction can result in significant downtime, which can impact production schedules and cause financial losses.

8. Future Trends

8.1 Integration of Smart Technologies

The future of multi-purpose furnaces will likely see the integration of smart technologies such as the Internet of Things (IoT), artificial intelligence (AI), and machine learning. IoT - enabled furnaces can be remotely monitored and controlled, allowing operators to adjust process parameters, receive real - time performance data, and predict maintenance needs. AI and machine learning algorithms can analyze data from the furnace sensors to optimize thermal processes, improve energy efficiency, and enhance product quality.

8.2 Energy - efficient Designs

With growing concerns about energy consumption and environmental impact, there will be a greater focus on developing energy - efficient multi-purpose furnaces. This may involve the use of advanced insulation materials, more efficient heating elements, and intelligent energy - management systems. For example, some furnaces may be designed to recover and reuse waste heat, reducing overall energy consumption.

8.3 Miniaturization and Portable Models

In the research and development sector, as well as for some on - site applications, there is a growing demand for miniaturized and portable multi-purpose furnaces. These compact models can offer the same functionality as larger industrial furnaces but in a more convenient and space - saving form. They can be used for quick prototyping, field testing, and small - scale production.

8.4 Hybrid and Multi - technology Furnaces

There is a trend towards developing hybrid furnaces that combine multiple heating technologies, such as electrical resistance heating and induction heating, or that integrate different processing methods. For example, a furnace that can perform both thermal processing and plasma - assisted processes may offer new possibilities for material synthesis and treatment, providing more versatile and efficient solutions for various applications.
