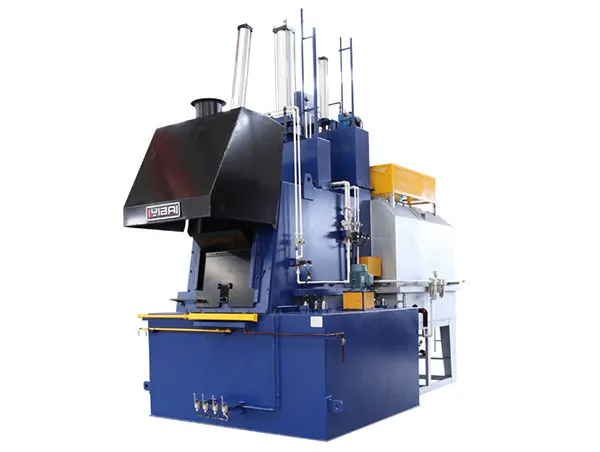

Box-type multi-purpose furnace

The box - type design of the furnace is a key factor in its superior performance. It provides excellent heat retention, reducing heat loss during operation and significantly enhancing energy efficiency. By minimizing heat dissipation, the furnace can maintain the desired temperature more effectively, resulting in lower energy consumption and reduced operational costs. Moreover, the enclosed structure of the box - type furnace acts as a barrier, protecting the internal components from external co...

INQUIRY

Detailed Description

Here’s a professional and comprehensive English introduction for a box-type Multi-purpose furnace, suitable for catalogs, websites, or technical documentation:

Box-type multi-purpose furnace

Flexible Batch Furnace for Diverse Heat treatment Applications

Overview

The box-type multi-purpose furnace is a highly versatile batch heat treatment system designed for a wide range of thermal processes, including hardening, annealing, normalizing, tempering, stress relieving, and more. Its robust chamber-style design allows for easy loading and unloading, making it ideal for tool rooms, R&D labs, maintenance shops, and industrial manufacturing plants requiring flexible heat treatment capabilities.

Whether used for high-precision tooling or general steel processing, this furnace delivers consistent results, tight temperature uniformity, and adaptability to various materials and load sizes.

Key Features

1. Rigid Box-Type Construction

Rectangular, front-loading chamber

Heavy-duty steel shell with high-grade refractory insulation

Long-lasting heating elements placed on sidewalls or all-around chamber

2. Wide Operating Temperature Range

Typical working range: 300°C to 1100°C

Suitable for both low-temperature tempering and high-temperature hardening

Multi-zone heating for uniform temperature distribution (±5°C)

3. Intelligent Control System

Digital PID controller or PLC + HMI touchscreen (optional)

Programmable temperature profiles (ramp/soak cycles)

Optional data logging and remote monitoring

4. Multi-Process Capability

Supports the following heat treatment operations:

Hardening of steels

Annealing (full, recrystallization, isothermal)

Tempering

Normalizing

Stress relieving

Pre-heating of molds or dies

5. Flexible Design Options

Single or double doors (manual or pneumatic)

Options for inert atmosphere or endogas connection

Integrated exhaust or fume collection systems

Compatible with heat-resistant trays, baskets, or racks

Applications

Tool and die production

Mechanical workshops

Aerospace and automotive parts

Heat treatment of gears, springs, shafts, and forgings

Laboratory testing and material R&D

Technical Specifications (Example Model)

ParameterValue

Chamber Size (WxDxH)600 × 800 × 500 mm (customizable)

Max Temperature1100°C

Heating MethodElectric resistance (NiCr or FeCrAl)

Temperature Uniformity±5°C (per AMS 2750)

Power Supply380V, 3-phase, 50/60 Hz

Loading MethodManual / cart-assisted

Atmosphere OptionAir / Nitrogen / Endothermic gas

Load Capacity100–2000 kg per batch

Safety Features

Over-temperature protection

Door interlock system

Emergency stop switch

Heat-resistant insulation and exterior cooling

Optional gas monitoring (for inert atmosphere use)

Advantages

Multi-functional: One furnace for many processes

Cost-effective: Reduces equipment investment

Easy to maintain: Simple design with replaceable elements

Safe and reliable: Meets industrial safety standards

Optional Upgrades

PLC with multi-zone control and recipe memory

Nitrogen or argon gas inlet for atmosphere protection

Integrated quench tank (oil or water)

Loading carts and fixtures

Remote control and IoT compatibility

Conclusion

The box-type multi-purpose furnace is an ideal solution for manufacturers and labs needing a reliable, flexible, and space-efficient heat treatment system. Its adaptability to a wide range of materials and thermal cycles makes it a valuable asset for both small-batch precision work and high-volume industrial operations.
