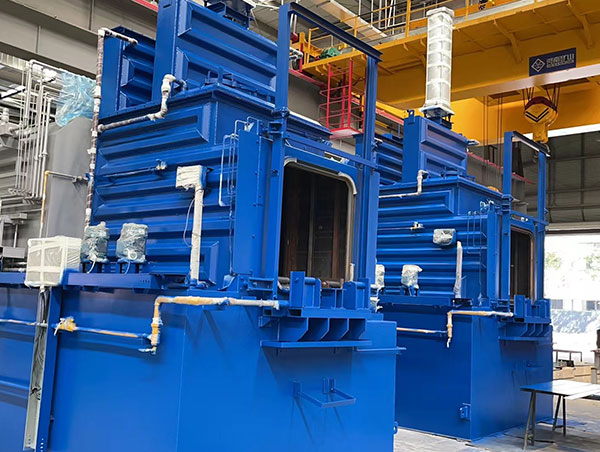

High and Low Temperature Tempering furnaces: A Comprehensive Overview

1. Introduction

Tempering is a crucial heat - treatment process in metallurgy and materials engineering, aimed at improving the mechanical properties of metals and alloys after quenching. High and low - temperature tempering furnaces are specialized equipment designed to carry out this process at different temperature ranges, each serving distinct purposes and applications. High - temperature tempering furnaces typically operate at temperatures ranging from 400°C to 650°C, while low - temperature tempering furnaces function at temperatures between 150°C and 250°C. This 2000 - word introduction will explore the principles, structural components, working processes, applications, advantages, challenges, and future trends associated with these furnaces.

2. Fundamental Principles of Tempering

2.1 The Need for Tempering

After quenching, metals and alloys often exhibit high hardness and brittleness due to the formation of martensite, a highly stressed crystal structure. Tempering involves reheating the quenched material to a specific temperature below its lower critical temperature and holding it for a certain period, followed by cooling. This process relieves internal stresses, reduces brittleness, and improves ductility, toughness, and impact resistance, making the material more suitable for practical applications.

2.2 Effects of High - Temperature Tempering

In high - temperature tempering, the elevated temperature promotes significant microstructural changes. The martensite begins to decompose, and cementite (iron carbide) particles precipitate out of the supersaturated solid solution. As the temperature increases, these cementite particles grow and coalesce, leading to a reduction in hardness and an increase in ductility and toughness. High - temperature - tempered materials are commonly used in components that require a good balance of strength, toughness, and wear resistance, such as automotive engine parts, gears, and axles.

2.3 Effects of Low - Temperature Tempering

Low - temperature tempering primarily focuses on stress relief without significantly reducing the hardness of the quenched material. At these relatively low temperatures, only a small amount of martensite decomposition occurs. Instead, the process mainly reduces the internal stresses generated during quenching, which can cause dimensional instability and cracking. Low - temperature - tempered steels are often used in applications where high hardness and wear resistance are essential, such as cutting tools, dies, and springs.

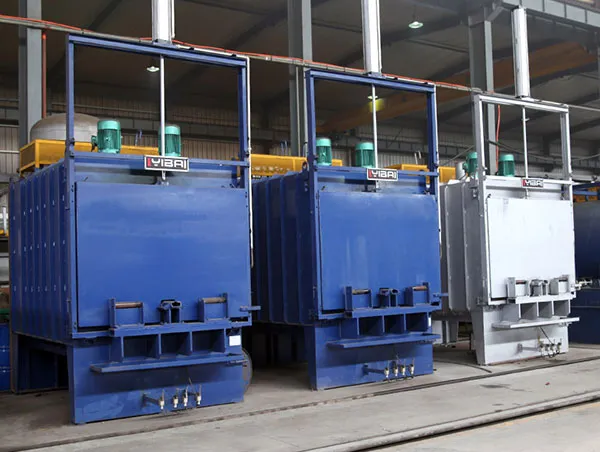

3. Structural Components of High and Low - Temperature Tempering Furnaces

3.1 Furnace Chamber

The furnace chamber is the core component where the tempering process takes place. It is constructed from high - quality refractory materials, such as ceramic fiberboards, refractory bricks, or high - alumina materials. These materials possess excellent heat - resistance properties, low thermal conductivity, and high mechanical strength, ensuring that the chamber can withstand the high temperatures and thermal cycles during operation while minimizing heat loss. The shape and size of the chamber vary depending on the application, with some designed for batch processing of small components and others for continuous processing of large - scale industrial parts.

3.2 Heating System

Heating Elements: High and low - temperature tempering furnaces typically use electric heating elements, such as resistance wires made of nickel - chromium (Ni - Cr) or iron - chromium - aluminum (Fe - Cr - Al) alloys. These elements convert electrical energy into heat through the principle of Joule heating. In high - temperature furnaces, the heating elements need to be able to withstand higher temperatures and are often designed with a larger cross - sectional area to handle the increased power requirements. For low - temperature furnaces, the heating elements can be of a simpler design, as lower temperatures are involved.

Heating Control: Advanced temperature - control systems are employed to precisely regulate the heating process. These systems usually consist of thermocouples or other temperature sensors placed within the furnace chamber to monitor the temperature in real - time. The data from the sensors is fed into a programmable logic controller (PLC) or a digital temperature controller, which adjusts the power supplied to the heating elements to maintain the desired temperature within a narrow tolerance range.

3.3 Temperature - Control and Monitoring System

In addition to the basic heating control, modern tempering furnaces are equipped with sophisticated temperature - control and monitoring systems. These systems can be programmed to follow specific tempering cycles, including heating rates, soaking times at the target temperature, and cooling rates. Some furnaces also feature multiple - zone temperature control, allowing for different temperature settings within the same chamber, which is useful for processing complex - shaped components or materials with varying heat - treatment requirements.

3.4 Atmosphere Control System (Optional)

For certain applications where the material being tempered is prone to oxidation or decarburization, an atmosphere control system is incorporated. This system involves introducing a protective gas, such as nitrogen, argon, or a mixture of gases, into the furnace chamber to displace the oxygen - containing air. By maintaining an inert or reducing atmosphere, the risk of surface degradation during the tempering process is significantly reduced, ensuring the integrity and quality of the material.

3.5 Cooling System

After the soaking period at the target tempering temperature, the material needs to be cooled. In some cases, natural air cooling may be sufficient for low - temperature tempering, especially when the cooling rate requirements are not stringent. However, for high - temperature tempering or when more precise control over the cooling rate is necessary, forced - air cooling, water - cooling, or oil - cooling systems may be used. These cooling systems help to rapidly and uniformly cool the components, preventing the formation of unwanted microstructures due to slow cooling.

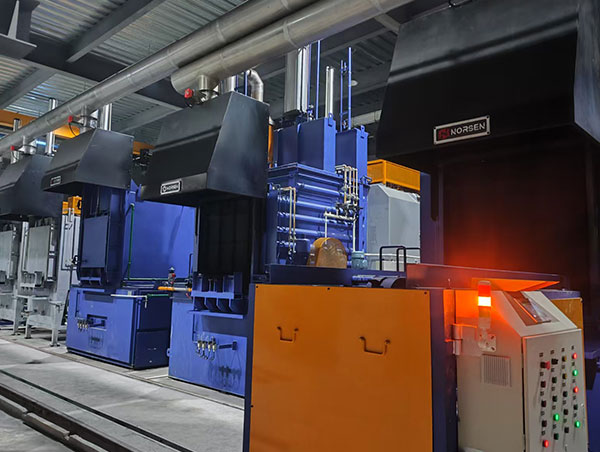

4. Working Processes

4.1 Loading the Furnace

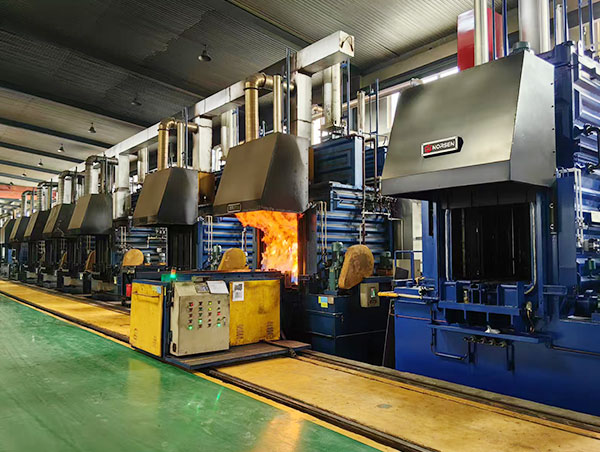

The components to be tempered are carefully loaded into the furnace chamber. In batch - type furnaces, the parts are placed on trays or fixtures, ensuring proper spacing to allow for uniform heat transfer. In continuous - type furnaces, the components are fed into the furnace on a conveyor belt or through a series of rollers.

4.2 Heating Phase

The furnace is then powered on, and the heating elements begin to raise the temperature of the chamber. The temperature - control system monitors and adjusts the heating rate according to the pre - programmed tempering cycle. In high - temperature tempering, the heating rate may be relatively slow to prevent thermal shock to the components, especially for large or thick - walled parts.

4.3 Soaking Phase

Once the target tempering temperature is reached, the components are held at this temperature for a specific period, known as the soaking time. The soaking time depends on various factors, such as the material type, component size, and the desired mechanical properties. During this phase, the microstructural changes occur, and the material's properties are gradually modified.

4.4 Cooling Phase

After the soaking period, the cooling process begins. As mentioned earlier, the cooling method is selected based on the requirements of the tempering process. Proper cooling is crucial to ensure that the desired mechanical properties are achieved and to avoid the formation of any detrimental microstructures.

4.5 Unloading the Furnace

Once the components have been cooled to a safe temperature, they are unloaded from the furnace. Quality - control checks may then be performed to verify that the tempering process has successfully achieved the desired mechanical properties.

5. Applications

5.1 High - Temperature Tempering Furnace Applications

Automotive Industry: High - temperature - tempered components are widely used in automotive engines, transmissions, and suspension systems. For example, engine connecting rods, crankshafts, and gears are tempered at high temperatures to obtain a balance of strength, toughness, and fatigue resistance, ensuring reliable performance under varying loads and speeds.

Aerospace Industry: In aerospace applications, where components need to withstand high stresses and extreme environmental conditions, high - temperature tempering is essential. Parts such as turbine blades, landing - gear components, and structural elements are heat - treated using high - temperature furnaces to enhance their mechanical properties and durability.

General Machinery Manufacturing: High - temperature - tempered steels are used in the production of various machinery parts, including shafts, bearings, and fasteners. These parts require good mechanical properties to ensure the smooth operation and long service life of the machinery.

5.2 Low - Temperature Tempering Furnace Applications

Cutting Tools and Dies: Low - temperature tempering is commonly applied to cutting tools, such as drills, milling cutters, and saw blades, as well as dies used in metal - forming processes. The process helps to relieve internal stresses while maintaining high hardness, which is crucial for the tool's cutting performance and wear resistance.

Springs: Springs, whether they are used in automotive suspensions, electrical appliances, or industrial equipment, often undergo low - temperature tempering. This treatment improves the spring's fatigue life and dimensional stability, ensuring that it can withstand repeated loading and unloading cycles without failure.

Precision Instruments and Gauges: Components in precision instruments and gauges, which require high dimensional accuracy and stability, are sometimes tempered at low temperatures. The stress - relief provided by low - temperature tempering helps to prevent deformation and maintain the precision of these components over time.

6. Advantages

6.1 Improved Mechanical Properties

Both high and low - temperature tempering processes significantly enhance the mechanical properties of metals and alloys. High - temperature tempering improves ductility and toughness, while low - temperature tempering relieves stress and maintains hardness, making the materials more suitable for a wide range of applications.

6.2 Dimensional Stability

By relieving internal stresses, tempering helps to improve the dimensional stability of components. This is particularly important for parts with tight tolerances, such as those used in precision machinery and aerospace applications, where even small dimensional changes can lead to performance issues.

6.3 Increased Fatigue Resistance

Tempered materials generally exhibit increased fatigue resistance compared to quenched - only materials. The microstructural changes during tempering reduce the likelihood of crack initiation and propagation under cyclic loading, extending the service life of components.

6.4 Customization of Properties

The ability to adjust the tempering temperature, soaking time, and cooling rate allows for the customization of the material's properties to meet specific application requirements. This flexibility makes tempering a versatile heat - treatment process in materials engineering.

7. Challenges

7.1 Energy Consumption

Tempering furnaces, especially high - temperature ones, consume a significant amount of energy. The continuous operation of heating elements and the need to maintain high temperatures for extended periods contribute to high energy costs. Improving the energy efficiency of these furnaces, such as through better insulation and more efficient heating element designs, is an ongoing challenge.

7.2 Uniformity of Temperature

Achieving uniform temperature distribution within the furnace chamber is crucial for consistent tempering results. However, factors such as the shape and size of the components, the location of the heating elements, and air circulation patterns can lead to temperature gradients. Advanced temperature - control systems and better chamber designs are being developed to address this issue.

7.3 Maintenance and Upkeep

The high - temperature and harsh operating conditions in tempering furnaces can cause wear and tear on the furnace components, such as heating elements, refractory linings, and temperature sensors. Regular maintenance and replacement of these components are necessary to ensure the reliable operation of the furnace, which adds to the overall cost of ownership.

7.4 Environmental Impact

The use of certain heating elements and the potential release of gases during the tempering process can have an environmental impact. For example, the production and disposal of some refractory materials may contribute to pollution. Developing more environmentally friendly materials and processes for tempering furnaces is a growing concern.
