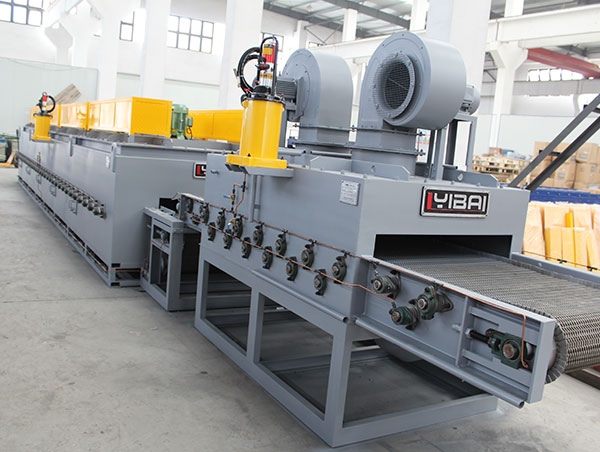

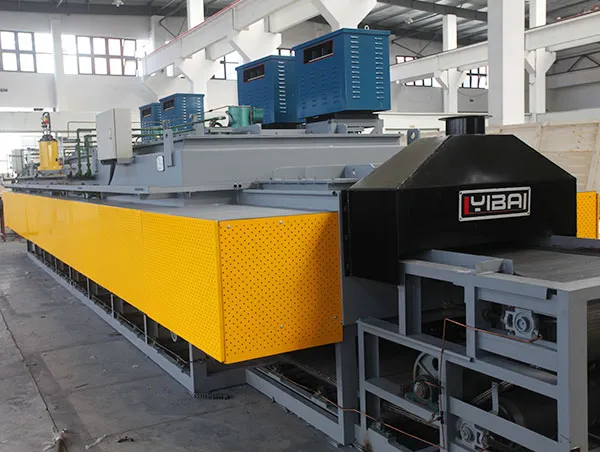

The structure of the Mesh belt tempering furnace:

The main structure of the mesh belt Tempering furnace consists of the furnace shell, furnace lining, muffle, mesh belt, transmission mechanism and electrical control system, etc.

The furnace shell and cover are mainly formed by bending steel plates and welded with section steel, presenting a beautiful appearance.

The furnace lining adopts an ultra-energy-saving structure: The insulation layer at the bottom of the furnace chamber is built with insulation bricks with a bulk density of 0.8, and the insulation layers on both sides are all made of aluminosilicate fibers. Meanwhile, a layer of asbestos board is placed on the surface layer of the furnace shell (with a small thermal conductivity at low temperatures). The insulation layer on the furnace cover is made of all-fiber needled blanket modules, which are anchored to the steel plate of the furnace cover by a special method (commonly known as the ceiling structure). This structure has many advantages such as good heat insulation effect, low energy storage, small heat loss, good thermal shock resistance and convenient inspection. Greatly increase the service life of the furnace lining. The parameters such as the power loss of the electric furnace when empty, the temperature rise of the furnace wall, and the uniformity of the furnace temperature are better than the standard.

Muffle is made by bending heat-resistant stainless steel plates into corrugated shapes and then welding them. It has high high-temperature strength.

The motor operates with stepless speed regulation and is controlled by variable frequency speed regulation. It is driven by the main drive sprocket and the mesh belt is fixed and tightened by auxiliary sprockets, limit compression wheels, etc. It is equipped with a power-off protection device. When power is cut off, the manually assisted tube rotates the mesh belt to prevent the mesh belt from stopping due to power failure, which may cause overburning of the workpieces in the furnace or damage to the mesh belt.

The heating temperature control instrument adopts the intelligent temperature control instrument of the Japanese company SHIMA. This instrument is equipped with a self-adjusting and scaling PID operation module, which can effectively prevent temperature overshoot. Meanwhile, the instrument can perform function selection, configuration and parameter setting, and display the set value and actual value in digital form. The main heating adopts the SCR series combined three-phase thyristor power controller, which uses a continuous non-on-off type. During control, it is not the traditional electrical on-off type but continuously and automatically adjusts the heating power according to the temperature control requirements. It features high precision in high-power temperature control, no noise and no interference to the internal power grid.

The mesh belt tempering furnace is a specialized and highly efficient piece of Heat treatment equipment, designed to enhance the mechanical properties of metal components through the precise process of tempering. With its innovative mesh belt design and advanced control systems, this furnace offers a seamless, consistent, and productive solution for industries that demand high - quality heat - treated products.

At the core of the mesh belt tempering furnace is its distinctive mesh belt mechanism. The continuously moving mesh belt acts as a conveyor, transporting workpieces smoothly through the furnace chamber. This design ensures that each component is evenly exposed to the controlled temperature environment within the furnace, facilitating uniform heat distribution and consistent tempering results. The mesh structure of the belt allows for optimal airflow around the workpieces, enabling efficient heat transfer and minimizing the risk of temperature gradients that could lead to uneven tempering. As the workpieces travel along the belt, they are gradually heated to the desired tempering temperature, a crucial step in relieving internal stress and adjusting the hardness and toughness balance of the metal.

The tempering process in the Mesh belt furnace is carefully regulated to meet the specific requirements of different materials and applications. Advanced temperature control systems, equipped with high - precision sensors and sophisticated control algorithms, monitor and maintain the furnace temperature within a narrow tolerance range. Operators can easily set and modify temperature profiles, as well as control the speed of the mesh belt, through an intuitive human - machine interface. This level of precision is essential for achieving the desired mechanical properties of the components. For instance, in the manufacturing of high - strength steel parts used in the automotive industry, the mesh belt tempering furnace can be precisely adjusted to reduce the brittleness of quenched components while maintaining their strength, ensuring they can withstand the rigors of daily use.

One of the significant advantages of the mesh belt tempering furnace is its high - throughput capacity. The continuous operation of the mesh belt allows for a steady stream of workpieces to be processed, increasing production efficiency and reducing cycle times. This makes it an ideal choice for mass - production environments, such as those in the electronics and machinery manufacturing sectors. In electronics, where small - scale precision components need to be tempered in large quantities, the mesh belt furnace can handle the volume while ensuring consistent quality. In the machinery industry, it can process a wide range of parts, from small fasteners to large structural components, all with uniform tempering results, enhancing the overall reliability of the finished products.

The furnace is also designed with user - friendliness and maintenance in mind. Its modular construction makes it easy to access and service key components, reducing downtime and maintenance costs. Additionally, safety features such as over - temperature alarms, emergency stop buttons, and protective barriers are integrated to safeguard operators and equipment. Some advanced models of mesh belt tempering furnaces are even equipped with predictive maintenance systems that can detect potential issues before they escalate, further optimizing the operational efficiency.

The applications of the mesh belt tempering furnace span across multiple industries. In the aerospace sector, it is used to temper high - performance alloys for critical components like turbine blades and engine parts, ensuring they can withstand extreme temperatures and mechanical stresses during flight. In the tool and die - making industry, the furnace helps to improve the toughness and durability of tools, reducing the likelihood of breakage and extending their service life. The medical device industry also benefits from the precise tempering capabilities of the mesh belt furnace, as it can be used to treat surgical instruments and implants, enhancing their biocompatibility and performance.

From an environmental and cost - management perspective, the mesh belt tempering furnace offers notable benefits. Its energy - efficient design, including high - quality insulation materials and optimized heating elements, reduces energy consumption. The ability to process components in a continuous and efficient manner also minimizes material waste, as the consistent tempering process reduces the occurrence of defective products. This combination of energy savings and waste reduction not only cuts down on operational costs but also contributes to a more sustainable manufacturing process.

In conclusion, the mesh belt tempering furnace is an essential asset for industries relying on heat treatment to enhance the performance of metal components. With its innovative mesh belt design, precise temperature control, high - throughput capacity, wide - ranging applications, and cost - saving features, it provides a reliable and efficient solution for achieving superior tempering results. Whether for aerospace manufacturing, tool production, or medical device fabrication, the mesh belt tempering furnace is the key to producing high - quality, durable components that meet the strictest industry standards.
