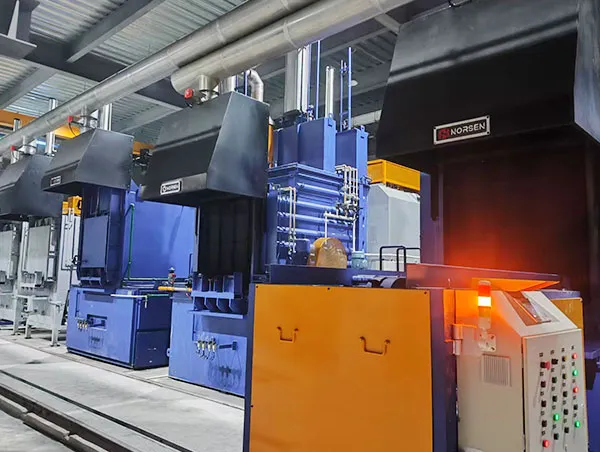

Multi-purpose furnace SHQ Series – Product Overview

The SHQ Series Multi-Purpose Furnace offers a range of compact and efficient thermal processing units designed to meet diverse Heat treatment needs across industries. Engineered for precision, durability, and energy efficiency, these furnaces are ideal for applications such as annealing, tempering, sintering, and stress relieving.

Key Features:

• Versatile Applications: Suitable for heat treatment of metals, ceramics, and composite materials.

• Variety of Chamber Sizes: Available in multiple capacities to accommodate small batch processing, laboratory research, and production needs.

• High Temperature Range: Operating temperatures up to 1,200°C, depending on model and configuration.

• Precise Temperature Control: Equipped with digital PID controllers for stable and accurate thermal management.

• Uniform Heating: Optimized heating element layouts ensure consistent temperature distribution across the chamber.

• Energy Efficient: Advanced insulation materials reduce heat loss and energy consumption.

• Durable Construction: Built from high-quality, heat-resistant materials for reliable long-term operation.

Typical Models:

• SHQ1: Small chamber, ideal for precise lab work and small parts heat treatment.

• SHQ2: Compact design for sample processing and R&D applications.

• SHQ-10 / SHQ-10-E: 10-liter capacity, suitable for small batch production.

• SHQ-15 / SHQ-15-E: 15-liter capacity, designed for larger samples and medium batch processes.

Applications:

• Tool and die heat treatment

• Laboratory and research material testing

• Sintering of ceramics and metal powders

• Prototyping and small-scale manufacturing

Optional Features:

• Controlled atmosphere options (inert, reactive gases)

• Programmable multi-step temperature profiles

• Data logging and remote monitoring systems

• Safety features including over-temperature alarms and protection

Multi-purpose furnace SHQ Design: Comprehensive Introduction and Features

Introduction

The Multi-purpose furnace SHQ Design is an advanced thermal processing solution engineered to meet the diverse needs of modern industrial applications. This versatile furnace is designed for high precision, efficiency, and safety in processes such as heat treatment, sintering, annealing, brazing, and material research. With a focus on adaptability, energy-saving performance, and user-friendly operation, the SHQ Design furnace stands out as an ideal choice for industries including metallurgy, electronics, aerospace, ceramics, and more.

In this comprehensive article, we will explore the technical features, working principles, applications, advantages, and customization options of the Multi-purpose Furnace SHQ Design. Whether you are a manufacturing engineer, researcher, or industry professional, this guide provides in-depth insights to help you understand why the SHQ Design furnace is a leading solution in thermal processing technology.

1. Overview of Multi-purpose Furnace SHQ Design

The SHQ Design furnace is developed with state-of-the-art technology to deliver precise temperature control and uniform heat distribution. It supports multiple atmospheric environments, including vacuum, inert gas, and controlled reactive gases, allowing users to perform a wide range of thermal processes under optimal conditions. The furnace structure is built with high-quality materials to ensure durability and minimal thermal loss.

Key highlights include:

• Wide temperature range typically from ambient to 1600°C or higher

• Advanced programmable temperature control system

• Multiple atmosphere control options (vacuum, inert, oxidizing, reducing)

• Modular and customizable chamber sizes

• Energy-efficient insulation and heating elements

• Safety interlocks and monitoring systems

2. Technical Specifications and Components

2.1 Heating Elements

The SHQ Design furnace uses high-performance heating elements such as silicon carbide (SiC), molybdenum disilicide (MoSi2), or resistance wire depending on application requirements. These materials provide rapid heating rates and excellent temperature stability.

2.2 Temperature Control System

Equipped with a microprocessor-based programmable controller, the furnace offers precise temperature ramp-up and ramp-down control, multi-segment programming, and real-time monitoring. This ensures repeatability and consistent thermal profiles for complex processes.

2.3 Atmosphere Management

One of the standout features of the SHQ furnace is its flexible atmosphere control. Users can switch between vacuum mode to eliminate contamination, inert gas mode for oxidation prevention, or reactive gas environments for special treatments like carburizing or nitriding.

2.4 Chamber and Insulation

The furnace chamber is made from high-grade stainless steel or alloy steel, coated with corrosion-resistant materials to withstand harsh environments. Superior thermal insulation minimizes energy consumption and maintains uniform temperature distribution.

2.5 Safety Features

The SHQ Design furnace incorporates multiple safety mechanisms including over-temperature protection, emergency shut-off, leak detection for vacuum systems, and automatic fault alarms to ensure operator and equipment safety.

3. Working Principle of SHQ Design Multi-purpose Furnace

The core working principle of the SHQ furnace revolves around controlled heat transfer and atmosphere regulation. When activated, the heating elements generate heat, which is evenly distributed inside the insulated chamber. The programmable controller manages the temperature profile according to the programmed recipe, adjusting heating power dynamically.

Simultaneously, the atmosphere control system maintains the required gas composition and pressure inside the chamber. For vacuum applications, pumps evacuate the chamber to remove air and moisture. In inert or reactive gas modes, precision gas flow controllers regulate the input gases, creating ideal conditions for specific material treatments.

The combination of accurate temperature and atmosphere control ensures the desired metallurgical or chemical transformations occur uniformly and reliably.

4. Applications of Multi-purpose Furnace SHQ Design

The versatility of the SHQ Design furnace allows it to be employed across a broad range of industrial sectors:

4.1 Metallurgy

Heat treatment processes such as annealing, tempering, hardening, and sintering metals require precise temperature and atmosphere control. The SHQ furnace enhances metal properties like strength, ductility, and corrosion resistance.

4.2 Ceramics and Glass

Firing and sintering ceramic materials at high temperatures while controlling the atmosphere prevents defects and ensures optimal mechanical properties.

4.3 Electronics Industry

The furnace is used for manufacturing electronic components where precise thermal cycles and contamination-free environments are critical.

4.4 Aerospace and Automotive

High-performance materials for aerospace and automotive applications often require complex heat treatments provided by the SHQ furnace to meet strict quality standards.

4.5 Research and Development

Laboratories and research institutions use the SHQ furnace for material synthesis, phase transformation studies, and prototype testing due to its flexibility and control accuracy.

5. Advantages of the Multi-purpose Furnace SHQ Design

5.1 High Precision and Reliability

With advanced temperature and atmosphere control, the SHQ furnace delivers consistent results with minimal deviation, vital for quality-critical applications.

5.2 Energy Efficiency

Innovative insulation materials and optimized heating element designs reduce power consumption, lowering operational costs and environmental impact.

5.3 Customization Options

Modular design allows tailoring furnace size, atmosphere system, and control software to specific client requirements, enhancing versatility.

5.4 User-friendly Interface

Touchscreen controls and intuitive software simplify operation, programming, and data logging, improving productivity.

5.5 Robust Construction

Built with high-grade materials and tested to rigorous standards, the furnace ensures long service life and minimal downtime.

6. Customization and Installation

The SHQ Design furnace can be customized in terms of:

• Chamber size and shape to accommodate various product dimensions

• Heating element type and arrangement for specific temperature uniformity

• Atmosphere control modules based on gas types and process needs

• Software integration for remote monitoring and automation

Installation support typically includes site preparation consultation, operator training, and after-sales maintenance services to ensure smooth integration and long-term performance.

7. Maintenance and Troubleshooting

Routine maintenance includes checking heating elements, calibration of sensors, leak tests for vacuum systems, and cleaning of gas lines. The furnace’s diagnostic software assists in early fault detection, minimizing downtime.

Conclusion

The Multi-purpose Furnace SHQ Design is a state-of-the-art thermal processing system that combines precision, flexibility, and efficiency. Its wide application range and customizable features make it an indispensable asset for industries requiring reliable heat treatment and material processing solutions. By investing in the SHQ furnace, companies can improve product quality, optimize production workflows, and achieve superior performance standards.
