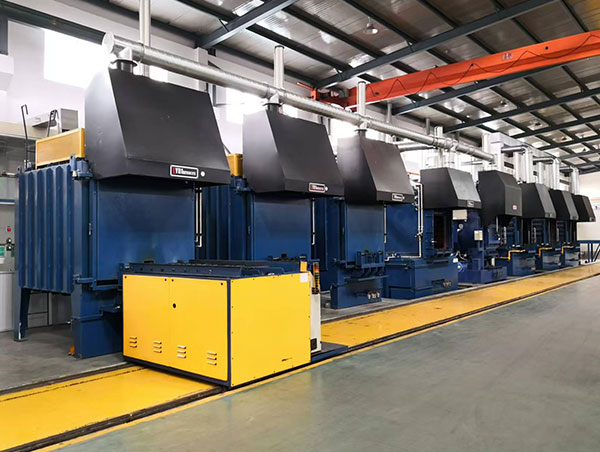

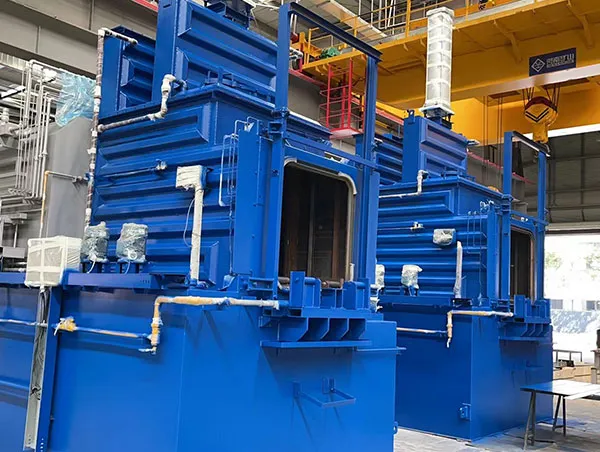

Multi-purpose furnace SHQ Series – Product Overview

The SHQ Series Multi-Purpose Furnace offers a range of compact and efficient thermal processing units designed to meet diverse Heat treatment needs across industries. Engineered for precision, durability, and energy efficiency, these furnaces are ideal for applications such as annealing, tempering, sintering, and stress relieving.

Key Features:

• Versatile Applications: Suitable for heat treatment of metals, ceramics, and composite materials.

• Variety of Chamber Sizes: Available in multiple capacities to accommodate small batch processing, laboratory research, and production needs.

• High Temperature Range: Operating temperatures up to 1,200°C, depending on model and configuration.

• Precise Temperature Control: Equipped with digital PID controllers for stable and accurate thermal management.

• Uniform Heating: Optimized heating element layouts ensure consistent temperature distribution across the chamber.

• Energy Efficient: Advanced insulation materials reduce heat loss and energy consumption.

• Durable Construction: Built from high-quality, heat-resistant materials for reliable long-term operation.

Typical Models:

• SHQ1: Small chamber, ideal for precise lab work and small parts heat treatment.

• SHQ2: Compact design for sample processing and R&D applications.

• SHQ-10 / SHQ-10-E: 10-liter capacity, suitable for small batch production.

• SHQ-15 / SHQ-15-E: 15-liter capacity, designed for larger samples and medium batch processes.

Applications:

• Tool and die heat treatment

• Laboratory and research material testing

• Sintering of ceramics and metal powders

• Prototyping and small-scale manufacturing

Optional Features:

• Controlled atmosphere options (inert, reactive gases)

• Programmable multi-step temperature profiles

• Data logging and remote monitoring systems

• Safety features including over-temperature alarms and protection

Manufacturing Multi-purpose furnace SHQ: Detailed Overview, Features, and Applications

Introduction

The Manufacturing Multi-purpose furnace SHQ stands as a state-of-the-art thermal processing solution designed to meet the diverse and demanding needs of modern industrial manufacturing. Combining advanced engineering with flexible operation modes, the SHQ furnace is widely recognized for its precision, efficiency, and adaptability across various sectors including metallurgy, ceramics, electronics, aerospace, automotive, and research and development.

This article offers an exhaustive introduction to the Manufacturing Multi-purpose Furnace SHQ, covering its technical specifications, working principles, industrial applications, key advantages, customization possibilities, maintenance requirements, and future trends. Designed to boost productivity and product quality, the SHQ furnace represents a critical asset for manufacturers seeking reliable and scalable heat treatment equipment.

1. Overview of the Manufacturing Multi-purpose Furnace SHQ

The Manufacturing Multi-purpose Furnace SHQ is engineered to handle a broad spectrum of Heat treatment processes, including sintering, annealing, tempering, brazing, drying, and heat strengthening. Its robust design enables operation at high temperatures, often ranging from ambient to 1600°C or beyond, with consistent temperature uniformity and atmosphere control to satisfy stringent process demands.

Core features of the SHQ furnace include:

• High precision temperature control systems ensuring stable thermal profiles

• Flexible atmosphere management with options for vacuum, inert gases, and reactive environments

• Durable furnace chamber construction using premium materials to withstand extreme conditions

• User-friendly interface and programmable controls for automated operation

• Enhanced safety systems for operator and equipment protection

By delivering reliable performance and process flexibility, the SHQ furnace facilitates improved product quality and operational efficiency.

2. Technical Specifications and Key Components

2.1 Heating Elements

Depending on the process requirements and maximum operating temperature, the SHQ furnace employs advanced heating elements such as Silicon Carbide (SiC), Molybdenum Disilicide (MoSi2), or Kanthal wire heaters. These elements provide rapid heating response, high-temperature endurance, and stable output.

2.2 Temperature Control System

The furnace integrates microprocessor-based temperature controllers with PID (Proportional-Integral-Derivative) algorithms for precise temperature regulation. Multiple thermocouples or infrared sensors monitor the chamber temperature in real time, enabling multi-stage programming with customized ramp rates and dwell times.

2.3 Atmosphere Control and Vacuum System

A critical aspect of the SHQ furnace is its atmosphere control capability. Equipped with vacuum pumps, gas flow meters, and valves, it can create high vacuum or controlled atmospheres using inert (argon, nitrogen), reducing (hydrogen), or reactive gases. This versatility is essential for preventing oxidation, contamination, or enabling specific chemical reactions during processing.

2.4 Furnace Chamber and Insulation

The chamber is constructed from high-grade stainless steel or alloy steel designed to resist corrosion and thermal stress. The interior is insulated with refractory bricks or ceramic fiber blankets, ensuring excellent thermal retention, reduced energy consumption, and minimized heat loss.

2.5 Safety Features

The furnace includes safety mechanisms such as over-temperature protection, emergency stop switches, interlocked doors, gas leak detectors, and alarms. These systems ensure safe operation under various working conditions and protect personnel and equipment from hazards.

3. Working Principle of the Manufacturing Multi-purpose Furnace SHQ

The SHQ furnace operates by converting electrical energy into heat via its heating elements. The generated heat is uniformly distributed within the insulated chamber, where the material or components to be processed are loaded. The programmable control system executes predetermined temperature profiles to meet specific process requirements.

The atmosphere control system maintains either vacuum conditions or specific gas compositions as needed, ensuring an environment that prevents oxidation or promotes chemical reactions. The vacuum system evacuates air and moisture, while the gas supply system precisely introduces gases to maintain desired atmosphere parameters.

Throughout the process, temperature sensors provide continuous feedback to the control unit, ensuring stability and repeatability. This makes the SHQ furnace suitable for highly sensitive manufacturing processes.

4. Applications of the Manufacturing Multi-purpose Furnace SHQ

4.1 Metallurgy and Metal Processing

The furnace is widely used for metallurgical heat treatments such as annealing, hardening, tempering, sintering, and brazing of metals and alloys. These processes enhance mechanical properties, corrosion resistance, and structural integrity of industrial parts used in machinery, tools, and automotive components.

4.2 Ceramic and Glass Industries

Ceramics and glass materials require precise firing and sintering cycles under controlled atmospheres to achieve desired mechanical and optical properties. The SHQ furnace’s atmosphere control and uniform heating ensure high-quality finished products with minimal defects.

4.3 Electronics and Semiconductor Manufacturing

Heat treatment of electronic components and semiconductors demands contamination-free environments and strict temperature control. The SHQ furnace supports these with clean vacuum or inert atmospheres and precise thermal profiles.

4.4 Aerospace and Automotive Components

Critical parts in aerospace and automotive sectors undergo specialized heat treatments to meet exacting standards. The SHQ furnace provides consistent processing conditions that help meet rigorous safety, durability, and performance criteria.

4.5 Research and Development

Research labs and material scientists rely on the SHQ furnace for experiments involving material synthesis, phase transformations, and prototype development due to its high accuracy, flexibility, and customizable features.

5. Key Advantages of the Manufacturing Multi-purpose Furnace SHQ

5.1 High Precision and Uniform Heating

Advanced temperature control technology and chamber insulation guarantee uniform heat distribution, which is essential for consistent material properties and quality output.

5.2 Versatile Atmosphere Control

Capability to operate under vacuum, inert, reducing, or reactive gas atmospheres expands the furnace’s usability across numerous industrial heat treatment processes.

5.3 Energy Efficiency

Optimized insulation and efficient heating elements reduce energy consumption, resulting in lower operational costs and a smaller carbon footprint.

5.4 Customizable Design

The modular design allows for tailoring furnace size, heating elements, atmosphere control systems, and software interfaces to suit specific manufacturing needs.

5.5 Robust Construction and Safety

Use of durable materials and integration of comprehensive safety features ensure long service life and safe operation in industrial environments.

6. Customization Options and Integration

Manufacturers can customize the SHQ furnace to align with their production requirements, including:

• Chamber dimensions and loading configurations

• Heating element types and arrangements for specific temperature profiles

• Atmosphere control modules tailored to required gases and pressures

• Software customization for automated control, data logging, and remote monitoring

• Integration with factory automation and MES (Manufacturing Execution Systems)

Professional installation and technical support accompany the furnace to guarantee optimal performance and smooth integration.

7. Maintenance and Troubleshooting

Routine maintenance ensures reliability and longevity of the SHQ furnace. Common maintenance tasks include:

• Inspecting and replacing heating elements as needed

• Calibrating temperature sensors and controllers

• Checking vacuum pumps and gas supply components for leaks or blockages

• Cleaning and inspecting furnace chamber and insulation materials

• Monitoring control software for alarms and diagnostic messages

Timely troubleshooting based on diagnostic feedback minimizes downtime and maintains process consistency.

8. Environmental and Safety Considerations

The SHQ furnace incorporates features that help manufacturers comply with environmental regulations, such as:

• Efficient energy consumption through advanced insulation

• Low emission vacuum pumps and gas handling systems

• Safe handling of gases with leak detection and ventilation systems

• Automated shutdown features to prevent accidents

These considerations make the SHQ furnace a sustainable choice for green manufacturing initiatives.

9. Future Development Trends

Continuous innovation in furnace technology is shaping the future of the Manufacturing Multi-purpose Furnace SHQ, including:

• Integration of IoT sensors for real-time monitoring and predictive maintenance

• Advanced automation enabling remote operation and data analytics

• Development of hybrid heating technologies combining electrical and induction heating

• Enhanced materials for improved thermal performance and lifespan

These advancements will further improve efficiency, reliability, and environmental performance of industrial furnaces.

Conclusion

The Manufacturing Multi-purpose Furnace SHQ is a versatile and advanced heat treatment solution engineered to meet the complex needs of contemporary industrial manufacturing. Its precise temperature control, flexible atmosphere management, robust construction, and customizable features make it ideal for a wide range of applications including metallurgy, ceramics, electronics, aerospace, and R&D.

By investing in the SHQ furnace, manufacturers can ensure superior product quality, operational efficiency, and compliance with environmental and safety standards, positioning themselves for long-term success in competitive markets.
