Multi-purpose furnace SHQ1 – Product Overview

The SHQ1 Multi-Purpose Furnace is a compact and efficient Heat treatment furnace designed to deliver precise thermal processing for small parts and laboratory applications. Its reliable temperature control and uniform heating make it ideal for a variety of processes including annealing, tempering, sintering, and stress relieving.

Key Features:

• Versatile Thermal Processing: Suitable for metals, ceramics, and composite materials.

• Compact Chamber: Ideal for small batch production, sample testing, and research.

• High Temperature Capability: Operates up to 1,100–1,200°C depending on configuration.

• Accurate Temperature Control: Digital PID controller ensures stable and precise temperature regulation.

• Uniform Heat Distribution: Optimized heating element design for consistent thermal processing.

• Energy-Efficient Design: High-quality insulation minimizes heat loss and reduces energy consumption.

• Durable Construction: Built with heat-resistant materials to ensure long-term reliability.

Technical Specifications:

• Model: SHQ1

• Chamber Volume: Typically smaller than 5 liters (please specify if exact size is known)

• Maximum Temperature: Up to 1,200°C

• Heating Method: Electric resistance heating

• Power Supply: 220V/380V, 50/60Hz (customizable)

• Temperature Control Accuracy: ±1°C

Applications:

• Heat treatment of small precision parts and tools

• Laboratory research and material testing

• Sintering of ceramics and metal powders

• Prototyping and R&D production

Optional Features:

• Controlled atmosphere capability (inert or reactive gases)

• Programmable temperature profiles and multi-step processes

• Data logging and remote monitoring

• Safety features including over-temperature protection

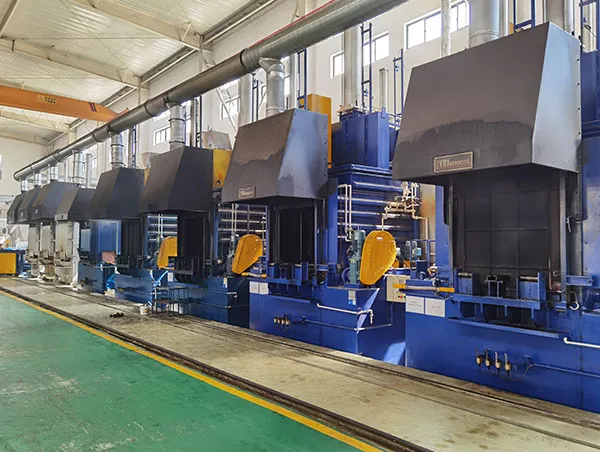

Industrial Multi-purpose furnace SHQ: Comprehensive Overview and Features

Introduction

The Industrial Multi-purpose furnace SHQ is a cutting-edge thermal processing equipment designed to fulfill a wide array of industrial heat treatment requirements. Engineered with precision, durability, and versatility in mind, the SHQ furnace serves as a reliable solution for manufacturing sectors including metallurgy, ceramics, electronics, aerospace, automotive, and research institutions.

This furnace is built to offer excellent temperature uniformity, advanced atmosphere control, energy efficiency, and user-friendly operation, making it ideal for processes such as sintering, annealing, brazing, heat treatment, drying, and more. This detailed article provides an extensive insight into the SHQ furnace’s design, working principles, applications, advantages, customization options, and maintenance, enabling industry professionals to make informed decisions when selecting thermal processing equipment.

1. Overview of the Industrial Multi-purpose Furnace SHQ

The Industrial Multi-purpose Furnace SHQ is characterized by its adaptability to handle diverse thermal processes under various atmospheric conditions. It typically supports operating temperatures from ambient up to 1600°C or higher, with precise temperature control and stable operation to meet rigorous industrial standards.

Key design principles focus on:

• Uniform heating for consistent material properties

• Robust chamber construction with high-quality materials

• Flexible atmosphere control, including vacuum, inert gases, and reactive environments

• Intelligent temperature control systems with programmable logic controllers (PLCs)

• Safety features for operator protection and equipment longevity

This furnace is widely utilized in industries demanding precision heat treatment with repeatable and reliable results.

2. Technical Specifications and Key Components

2.1 Heating Elements

The SHQ furnace employs high-performance heating elements such as Silicon Carbide (SiC), Molybdenum Disilicide (MoSi2), or Kanthal resistance wires depending on process temperature and atmosphere. These elements provide rapid temperature ramp-up and sustained high-temperature operation.

2.2 Temperature Control System

A sophisticated microprocessor-based control system manages the heating cycle, allowing for multi-stage programming, ramp rate adjustment, dwell times, and real-time temperature monitoring via thermocouples or infrared sensors. This ensures thermal processes are executed with high precision.

2.3 Atmosphere and Vacuum System

The furnace features integrated vacuum pumps and gas supply systems to create specific atmosphere conditions required for sensitive heat treatment applications. Options include high vacuum, inert gases like argon or nitrogen, reducing gases such as hydrogen, and reactive gases for carburizing or nitriding.

2.4 Furnace Chamber and Insulation

Constructed from corrosion-resistant stainless steel or high-temperature alloys, the furnace chamber withstands harsh environments. High-density ceramic fiber or refractory brick insulation minimizes heat loss, improving energy efficiency and temperature stability.

2.5 Safety Mechanisms

To ensure safe operation, the SHQ furnace includes multiple protective devices: over-temperature cutoffs, gas leak detectors, emergency shutoff switches, and interlocked door systems that prevent accidental exposure to high temperatures.

3. Working Principle of Industrial Multi-purpose Furnace SHQ

The furnace operates by converting electrical energy into heat through the heating elements. The heat is evenly transferred to the furnace chamber, where the workpieces or materials are placed. The temperature control system follows programmed thermal cycles, ensuring stable and uniform heating profiles.

When required, the vacuum or atmosphere system controls the environment inside the chamber. For vacuum operation, air and moisture are evacuated, preventing oxidation and contamination. For controlled gas atmospheres, precision gas flow controllers regulate the supply to maintain desired gas composition and pressure.

Together, these features allow the SHQ furnace to perform complex heat treatments with high repeatability and minimal thermal gradients.

4. Industrial Applications of SHQ Furnace

4.1 Metallurgical Industry

The SHQ furnace is extensively used for heat treatment of metals and alloys, including annealing, tempering, hardening, sintering, and brazing. These processes enhance mechanical properties like strength, hardness, and corrosion resistance essential for high-performance components.

4.2 Ceramics and Glass Manufacturing

High-temperature firing and sintering of ceramics and glass materials require precise temperature and atmosphere control to avoid defects and ensure optimal material properties. The SHQ furnace provides a contamination-free environment crucial for these sensitive materials.

4.3 Electronics and Semiconductor Industry

The manufacture of electronic components such as semiconductors, resistors, and capacitors demands strict thermal profiles and clean environments. The SHQ furnace supports these needs with its controlled atmosphere and precise temperature management.

4.4 Aerospace and Automotive Sectors

Critical aerospace and automotive parts undergo specialized heat treatments to meet stringent quality standards. The SHQ furnace offers repeatable cycles and customized atmosphere options to meet these advanced requirements.

4.5 Research and Development

In research labs and material science, the furnace’s versatility and accuracy enable experiments involving phase transformations, material synthesis, and prototype development.

5. Advantages of the Industrial Multi-purpose Furnace SHQ

5.1 Precision and Uniformity

The SHQ furnace’s advanced temperature control and uniform heating system ensure consistent material properties throughout the batch, minimizing quality variations.

5.2 Flexible Atmosphere Control

Ability to switch between vacuum, inert, reducing, and reactive atmospheres expands the furnace’s applicability across different thermal processes.

5.3 Energy Efficiency

High-quality insulation and optimized heating elements reduce power consumption, cutting operational costs and minimizing environmental impact.

5.4 Customization Capabilities

Modular design enables customization of chamber size, heating element type, atmosphere control, and software interfaces to tailor the furnace for specific industrial needs.

5.5 Robust and Safe Design

Built for longevity and safety, the furnace incorporates durable materials and multiple safety features to protect operators and equipment.

6. Customization and Integration

The Industrial Multi-purpose Furnace SHQ can be customized based on:

• Chamber dimensions to fit various product sizes

• Heating element material and arrangement tailored for process requirements

• Atmosphere control modules for specific gas mixtures and pressures

• Integration with factory automation systems and remote monitoring platforms

• Software customization for automated process control and data logging

Comprehensive installation support and operator training are provided to ensure seamless integration and optimal performance.

7. Maintenance and Troubleshooting

Regular maintenance includes inspection of heating elements, calibration of temperature sensors, checking vacuum pump performance, and cleaning gas supply lines. The furnace’s built-in diagnostic tools facilitate early detection of faults, preventing downtime and extending service life.

8. Environmental Considerations

The SHQ furnace incorporates eco-friendly design elements such as energy-saving insulation, low-emission vacuum pumps, and gas recycling options. These features help industries meet environmental regulations and promote sustainable manufacturing practices.

9. Future Trends and Innovations

The Industrial Multi-purpose furnace SHQ Design continuously evolves with technological advancements, including:

• Integration of IoT sensors for predictive maintenance

• Enhanced automation for remote process control

• Advanced materials for improved thermal efficiency

• Hybrid heating systems combining resistance and induction heating

These innovations position the SHQ furnace as a forward-looking solution for next-generation industrial thermal processing.

Conclusion

The Industrial Multi-purpose Furnace SHQ is a highly versatile, precise, and energy-efficient thermal processing system designed to meet the complex needs of modern industry. Its advanced temperature and atmosphere controls, coupled with customizable features and robust safety mechanisms, make it an indispensable asset in metallurgy, ceramics, electronics, aerospace, and research sectors. Investing in the SHQ furnace ensures superior product quality, operational efficiency, and compliance with stringent industrial standards.
