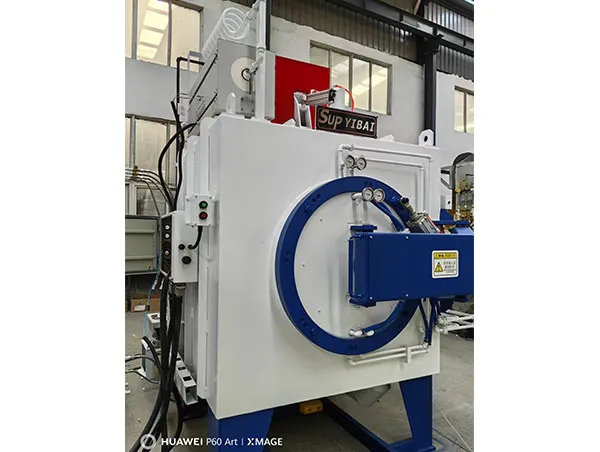

Pre-evacuated nitriding furnace System – Product Introduction

The Pre-Evacuated Nitriding furnace system is an advanced thermal processing solution designed for high-precision nitriding treatments. By utilizing a vacuum pre-evacuation stage, this system ensures superior control of the nitriding atmosphere, resulting in high-quality, uniform surface hardening and minimal contamination.

Key Features:

• Vacuum Pre-Evacuation: Removes residual gases and moisture before the nitriding cycle begins, ensuring a clean and controlled process environment.

• Precise Atmosphere Control: Enables accurate regulation of nitriding gases (e.g., ammonia, nitrogen, hydrogen), ensuring consistent layer depth and surface hardness.

• Advanced Process Flexibility: Supports various nitriding processes, including gas nitriding, gas nitrocarburizing, and potential integration with plasma-assisted technologies.

• Excellent Uniformity: Optimized furnace design and gas flow ensure uniform temperature and nitriding potential across the workload.

• High-Quality Surface Treatment: Produces wear-resistant, corrosion-resistant, and fatigue-resistant surfaces ideal for critical engineering components.

• Energy Efficient Design: Features low thermal mass insulation and intelligent heating control to reduce energy consumption.

• Automation & Control: Equipped with a PLC or SCADA-based system for fully automated operation, recipe management, and real-time process monitoring.

Typical Applications:

• Gears, crankshafts, camshafts, and valve parts

• Dies and tools requiring surface hardening

• Automotive, aerospace, and heavy machinery components

• High-precision mechanical parts

Optional Features:

• Integrated cooling systems

• Multi-zone heating control

• Data logging and traceability functions

• Modular system designs for batch or continuous processing

Pre-evacuated Nitriding Furnace System: Comprehensive Overview and Google SEO Optimized Description

Introduction

The pre-evacuated nitriding furnace system represents a breakthrough in advanced Heat treatment technologies, widely adopted in industries requiring superior surface hardness and wear resistance. This system utilizes a vacuum environment before the nitriding process, which significantly improves process quality by eliminating air and contaminants. The pre-evacuated environment ensures optimal nitrogen diffusion and reaction with metal surfaces, creating uniform nitrided layers with enhanced mechanical properties.

This article provides a detailed analysis of the pre-evacuated nitriding furnace system, including its working principle, system components, advantages, industrial applications, maintenance, and future trends. It is designed to offer manufacturers, engineers, and technical professionals a complete understanding of this technology's role in modern material processing.

1. Understanding the Pre-evacuated Nitriding Furnace System

1.1 What is Nitriding?

Nitriding is a thermochemical surface treatment process where nitrogen atoms diffuse into the surface of steel or other metal alloys to form hard nitrides. These nitrides enhance surface hardness, wear resistance, corrosion resistance, and fatigue strength without altering the metal’s core properties.

1.2 Concept of Pre-evacuation

Traditional nitriding can be performed in atmospheres containing nitrogen or ammonia gas but may suffer from contamination, oxidation, and uneven nitriding layers. The pre-evacuated nitriding furnace system solves these problems by first evacuating the furnace chamber to remove air, moisture, and other contaminants, thus creating a high-purity vacuum environment before introducing nitriding gases.

2. Components and Structure of the Pre-evacuated Nitriding Furnace System

2.1 Vacuum Chamber

The core component is a vacuum-tight chamber designed to withstand high temperatures and maintain vacuum conditions during the nitriding cycle. It is usually constructed from high-grade stainless steel or specialized alloys.

2.2 Vacuum Pumping System

A powerful vacuum pumping system evacuates the furnace chamber to the desired vacuum level, typically ranging from 10^-3 to 10^-5 Torr. This system includes rotary vane pumps, diffusion pumps, or turbomolecular pumps depending on the required vacuum quality.

2.3 Heating System

Uniform and precise heating is essential for effective nitriding. The furnace employs resistance heating elements or induction coils controlled by advanced temperature controllers and thermocouples to maintain consistent temperatures throughout the process.

2.4 Gas Introduction and Control System

After evacuation, nitriding gases such as nitrogen or ammonia are introduced in controlled quantities using precision valves, mass flow controllers, and gas analyzers to maintain optimum gas composition and pressure.

2.5 Control and Monitoring System

Modern pre-evacuated nitriding furnaces are equipped with automated control systems allowing real-time monitoring of vacuum pressure, temperature, gas flow, and process timing, ensuring reproducibility and process optimization.

3. Working Principle of the Pre-evacuated Nitriding Furnace System

The nitriding process in a pre-evacuated furnace involves multiple carefully controlled stages:

• Step 1: Pre-evacuation
  The vacuum pump removes air, moisture, and other gases from the furnace chamber, reducing pressure to a high vacuum level. This step prevents oxidation and contamination.

• Step 2: Heating
  The workpieces are gradually heated to the nitriding temperature, typically between 500°C and 600°C, under vacuum conditions.

• Step 3: Gas Introduction
  Once the desired vacuum and temperature are achieved, nitrogen-containing gas is introduced at controlled pressure and flow rates.

• Step 4: Nitriding Reaction
  Nitrogen atoms diffuse into the metal surface, forming hard nitrides (such as Fe4N and Fe2-3N) that enhance surface properties.

• Step 5: Cooling and Atmosphere Purge
  After nitriding, the furnace is cooled under vacuum or inert gas to prevent oxidation and preserve the nitrided layer’s integrity.

4. Advantages of the Pre-evacuated Nitriding Furnace System

4.1 Superior Surface Quality

The vacuum environment eliminates oxygen and other contaminants, producing clean, oxide-free nitrided surfaces with uniform hardness and improved wear resistance.

4.2 Enhanced Mechanical Properties

Pre-evacuated nitriding results in higher surface hardness, increased fatigue strength, and better corrosion resistance compared to conventional nitriding methods.

4.3 Environmental and Energy Efficiency

Vacuum nitriding reduces the release of harmful gases and requires less energy due to minimized heat loss in the evacuated chamber, contributing to sustainable manufacturing.

4.4 Process Control and Repeatability

Automated control systems and vacuum conditions provide excellent reproducibility, enabling precise control over nitriding depth, layer thickness, and phase composition.

4.5 Versatility

The system can be adapted to nitriding various steels, alloys, and even complex-shaped components used in automotive, aerospace, tooling, and medical industries.

5. Industrial Applications of Pre-evacuated Nitriding Furnace Systems

5.1 Automotive Industry

Components such as camshafts, crankshafts, gears, and valves benefit from enhanced wear resistance and fatigue life achieved through vacuum nitriding.

5.2 Aerospace Industry

Turbine blades, structural components, and landing gear parts require precise surface hardening to withstand extreme conditions, making pre-evacuated nitriding ideal.

5.3 Tooling and Mold Industry

Cutting tools, dies, and molds achieve longer service life and improved performance due to the hard, wear-resistant nitrided surfaces.

5.4 Medical Devices

Surgical instruments and implants are nitrided to improve durability and biocompatibility without compromising the core material.

6. Maintenance and Operational Best Practices

6.1 Vacuum Pump Maintenance

Regular servicing and oil changes of vacuum pumps ensure consistent evacuation efficiency.

6.2 Seal and Gasket Checks

Inspect seals frequently for wear or damage to prevent vacuum leaks and maintain process integrity.

6.3 Temperature Calibration

Routine calibration of thermocouples and heating elements ensures accurate temperature control.

6.4 Gas Purity Management

Use high-purity nitriding gases and regularly check for impurities to avoid contamination.

6.5 Safety Procedures

Implement strict safety protocols for handling gases and high temperatures, including proper ventilation and emergency shutdown systems.

7. Future Trends and Innovations

• Integration with Industry 4.0: Advanced sensors and IoT connectivity enable real-time monitoring, predictive maintenance, and data analytics to optimize nitriding processes.

• Hybrid Nitriding Techniques: Combining vacuum nitriding with plasma or ion nitriding to improve efficiency and surface characteristics.

• Eco-friendly Upgrades: Development of systems with reduced energy consumption and zero harmful gas emissions.

• Material Advancements: Innovations in furnace chamber materials for better durability and thermal performance.

Conclusion

The pre-evacuated nitriding furnace system is a pivotal technology in modern heat treatment, offering unmatched control, quality, and efficiency in nitriding processes. By leveraging vacuum environments, precise heating, and gas control, this system delivers superior surface hardness, wear resistance, and durability across multiple industries. As technological advancements continue, pre-evacuated nitriding furnace systems will remain essential tools for manufacturers aiming for high-performance material treatments with sustainable and repeatable results.
