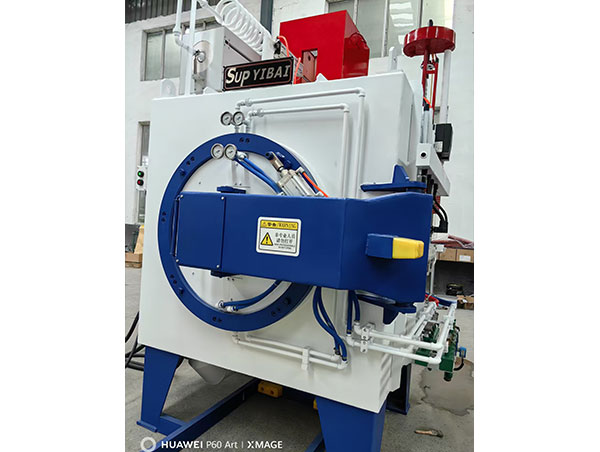

Pre-evacuated nitriding furnace Chamber – Product Overview

The Pre-evacuated nitriding furnace chamber is a high-performance component engineered for precision-controlled nitriding processes. By incorporating a vacuum pre-evacuation step before gas introduction, this chamber ensures a clean, stable, and repeatable nitriding environment, resulting in superior case hardening and minimal surface contamination.

Key Features:

• Vacuum Pre-Evacuation: Efficiently removes air, moisture, and residual gases to create an ultra-clean atmosphere before nitriding begins.

• Optimized Chamber Design: Robust, sealed construction made of high-grade stainless steel or heat-resistant alloys to withstand high temperatures and reactive gases.

• Uniform Heat Distribution: Carefully designed heating elements and insulation provide consistent temperature across the entire workload area.

• Precise Atmosphere Management: Enables tight control over nitriding gas flow and composition, improving surface hardness, wear resistance, and case depth uniformity.

• Contamination-Free Process: The pre-evacuation step significantly reduces oxygen levels, minimizing oxide formation and discoloration on the workpiece surface.

• Integrated Safety Systems: Includes overpressure relief, leak detection, and emergency shutdown protocols for safe operation.

Advantages:

• Improved nitriding quality and surface finish

• Greater reproducibility and process control

• Reduced gas consumption and cycle times

• Compatible with gas nitriding, nitrocarburizing, and other advanced nitriding methods

Applications:

• Automotive transmission components

• Aerospace fasteners and turbine parts

• Tool steels, dies, and molds

• Precision mechanical parts requiring enhanced surface properties

Pre-evacuated Nitriding furnace chamber: Comprehensive Overview and Google SEO Optimized Description

Introduction

Pre-evacuated nitriding furnace chamber technology represents a significant advancement in the field of Heat treatment, specifically in nitriding processes. This technology focuses on creating a controlled vacuum environment before the nitriding cycle, ensuring the highest level of purity and process control. The result is superior surface hardness, wear resistance, and fatigue strength in treated metals. This article delves deep into the principles, design, applications, benefits, and maintenance of pre-evacuated nitriding furnace chambers, providing an all-encompassing understanding for industry professionals, engineers, and manufacturers.

1. What is a Pre-evacuated Nitriding Furnace Chamber?

A pre-evacuated nitriding furnace chamber is a heat treatment vessel specially designed to perform nitriding—a surface hardening process—under vacuum conditions. The "pre-evacuated" term refers to the initial removal of air and contaminants from the chamber before introducing the nitriding gas, typically nitrogen or ammonia. This vacuum step prevents oxidation and contamination, ensuring a clean atmosphere and uniform nitriding layers.

2. Working Principle of the Pre-evacuated Nitriding Furnace Chamber

The nitriding process within a pre-evacuated chamber involves several key stages:

• Vacuum Evacuation: The chamber is first evacuated using vacuum pumps to remove air and moisture, typically reaching pressures below 10^-3 Torr.

• Gas Introduction: After evacuation, pure nitrogen or ammonia gas is introduced under controlled pressure and temperature.

• Nitriding Reaction: The metal surfaces react with nitrogen atoms, forming hard nitrides that enhance surface hardness and wear resistance.

• Cooling and Atmosphere Control: Post nitriding, controlled cooling and atmosphere purging maintain surface integrity.

3. Design Features of Pre-evacuated Nitriding Furnace Chambers

• Vacuum Tight Seals: Essential for maintaining vacuum integrity and preventing leaks.

• High-Quality Vacuum Pumps: To efficiently evacuate the chamber.

• Temperature Control Systems: Precise heating elements and thermocouples ensure stable and uniform temperature distribution.

• Gas Flow and Control: Sophisticated valves and flow meters regulate nitriding gas input.

• Material Selection: Chambers are made from stainless steel or other materials resistant to high temperature and chemical corrosion.

4. Advantages of Using Pre-evacuated Nitriding Furnace Chambers

• Enhanced Surface Quality: Vacuum eliminates oxidation and contamination, resulting in clean, uniform nitrided layers.

• Improved Mechanical Properties: Better hardness, wear resistance, and fatigue life of treated parts.

• Energy Efficiency: Vacuum environment reduces heat loss, lowering operational costs.

• Environmental Benefits: Reduced emission of harmful gases compared to traditional nitriding methods.

• Process Repeatability: Controlled environment ensures consistent results batch after batch.

5. Applications of Pre-evacuated Nitriding Furnace Chambers

• Automotive Industry: Treatment of gears, camshafts, crankshafts for enhanced wear resistance.

• Aerospace Industry: Surface hardening of turbine blades and structural components.

• Tooling Industry: Hardening of cutting tools, molds, and dies.

• Medical Industry: Treatment of surgical instruments for durability.

6. Maintenance and Operational Considerations

• Regular Vacuum Pump Maintenance: To ensure consistent evacuation performance.

• Seal Inspection and Replacement: Prevent leaks and maintain vacuum.

• Temperature Calibration: Frequent checks for heating elements and thermocouples.

• Gas Purity Monitoring: Ensure nitriding gas is free from contaminants.

• Safety Protocols: Handling gases and vacuum systems safely.

7. Future Trends in Pre-evacuated Nitriding Technology

• Integration with Industry 4.0 for real-time process monitoring and control.

• Use of advanced materials for furnace chambers improving longevity.

• Hybrid nitriding processes combining vacuum with plasma or ion nitriding.

Conclusion

The pre-evacuated nitriding furnace chamber stands as a vital technology in modern surface hardening treatments, providing unparalleled control over the nitriding atmosphere and process parameters. By ensuring a vacuum environment before nitriding, it eliminates oxidation, enhances surface quality, and improves mechanical properties of treated components. Its broad applications across industries and continuous technological advancements make it a cornerstone in heat treatment manufacturing.
