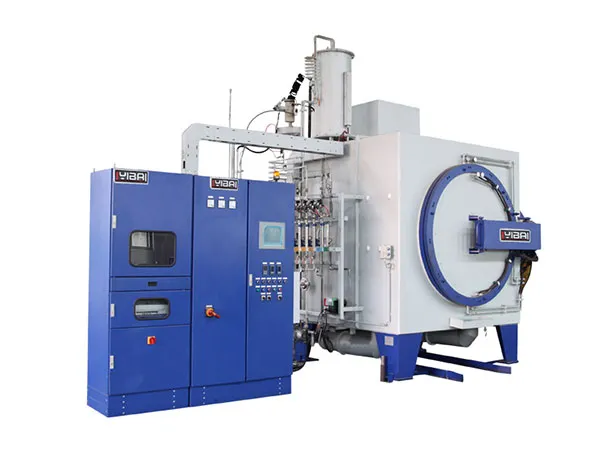

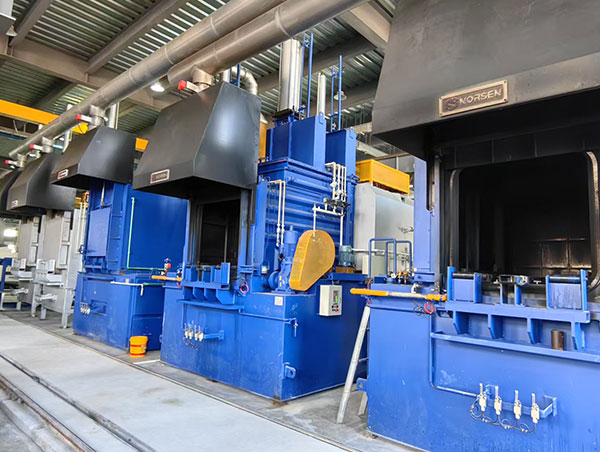

The RHN vacuum nitriding furnace is a high - performance equipment used for the nitriding treatment of metal materials. Here is an introduction to its working principle, structural characteristics, and process features:

Working Principle

Vacuum Environment Creation: First, the workpiece is placed in the furnace chamber, and the vacuum system is started to pump out the air inside the furnace to create a vacuum environment. This helps to remove impurities on the workpiece surface and prevent oxidation during the nitriding process.

Heating and Temperature Control: The furnace is heated by electric heating elements to raise the temperature to the set nitriding temperature. During this process, the temperature - control system ensures accurate temperature control to provide the necessary thermal conditions for the nitriding reaction.

Nitriding Gas Injection: After the temperature reaches the set value, the nitriding gas (usually ammonia gas) is injected into the furnace. Under the action of high temperature and vacuum, the ammonia gas decomposes to produce active nitrogen atoms, which react chemically with the metal surface of the workpiece to form a nitride layer.

Cyclic Treatment: The process of injecting nitriding gas and pumping vacuum is repeated multiple times. This allows the nitrogen atoms to continuously penetrate into the workpiece surface and increase the depth of the nitriding layer until the required nitriding layer depth and performance requirements are met.

Structural Characteristics

Furnace Body Structure: The outer shell of the furnace is welded by steel plates and shaped steel, which has high strength and can support the processing of large and heavy workpieces. The furnace lining is made of ultra - lightweight, high - strength energy - saving refractory micro - bead bricks, with high - purity ceramic fibers sandwiched on the outer layer and filled with expanded vermiculite powder in the middle for heat preservation. This structure has good heat - preservation performance, which can reduce heat loss.

Heating Elements: Usually, high - temperature - resistant alloy wires are wound into a spiral shape and installed on the furnace lining to heat the furnace chamber evenly. The heating elements are evenly distributed along the circumference of the heating chamber to ensure high - temperature uniformity.

Vacuum System: It includes components such as a vacuum pump, vacuum gauge, and pipeline. The vacuum pump is used to pump out the air and exhaust gas in the furnace to create and maintain a vacuum environment. The vacuum gauge is used to monitor the vacuum degree in the furnace in real time.

Gas Supply System: Comprises pipes for supplying ammonia gas and other components. The ammonia gas is supplied to the furnace through the gas - supply system, and the flow rate and pressure of the ammonia gas can be accurately controlled to meet the process requirements.

Temperature - Control System: Equipped with an intelligent temperature - control instrument and a PID adjustment - control system to accurately control the furnace temperature and process parameters. Thermocouples are installed in the furnace to measure the temperature and provide feedback signals to the temperature - control system for real - time adjustment of the heating power.

Process Features

Low - Temperature Treatment and Small Deformation: The nitriding treatment is carried out at a relatively low temperature, which is beneficial for reducing the deformation of the workpiece and maintaining its dimensional accuracy and shape. It is suitable for processing workpieces with high - precision requirements.

Wide Applicability: It is applicable to various steel materials, including alloy structural steel, stainless acid - resistant steel, heat - resistant steel, alloy tool steel, high - speed tool steel, and nodular cast iron, etc. It has a wide range of applications in the machinery manufacturing, automotive, aerospace, and other industries.

Significant Performance Improvement: It can significantly improve the surface hardness, wear resistance, fatigue resistance, and corrosion resistance of the workpiece, thereby improving the service life and reliability of the workpiece.

High Efficiency, Energy - Saving, and Environmental Protection: Compared with the general gas nitriding process, the vacuum nitriding process has a shorter cycle. The use of a vacuum environment and precise process control can reduce the consumption of nitriding gas and energy, and the exhaust gas is pumped out by a vacuum pump for treatment, which is more environmentally friendly.

The RHN vacuum nitriding furnace represents a pinnacle of innovation in Heat treatment technology, offering a highly specialized and efficient solution for enhancing the surface properties of various materials. By leveraging the power of vacuum - based processes combined with advanced nitriding techniques, this furnace sets new benchmarks for precision, reliability, and performance in the manufacturing and engineering sectors.

At the core of the RHN vacuum nitriding furnace’s operation is its unique vacuum - assisted nitriding mechanism. Before the nitriding process commences, the furnace rapidly evacuates the chamber to create a high - vacuum environment. This pre - evacuation step is crucial as it eliminates residual air, moisture, and contaminants that could interfere with the nitriding process. Without these unwanted substances, the subsequent introduction of nitriding gases, such as ammonia or a nitrogen - rich gas mixture, can react more effectively with the workpiece surface. In a vacuum setting, the nitrogen atoms from the nitriding gas can diffuse more uniformly into the material, resulting in a nitride layer with superior hardness, wear resistance, and corrosion protection. This is particularly significant for high - performance components, where even the slightest imperfection in the nitrided surface can impact functionality. For example, in the production of aerospace turbine blades, the RHN vacuum nitriding furnace ensures that the blades develop a dense and consistent nitride layer, enabling them to withstand extreme temperatures and mechanical stresses during flight.

One of the standout advantages of the RHN vacuum nitriding furnace is its exceptional process control capabilities. Equipped with state - of - the - art sensors and intelligent control systems, the furnace can precisely regulate key parameters such as temperature, vacuum level, gas flow rate, and treatment time. The temperature control system, for instance, utilizes high - accuracy thermocouples and advanced PID (Proportional - Integral - Derivative) control algorithms to maintain the furnace temperature within a narrow tolerance range. This level of precision is essential for achieving consistent nitriding results across different batches of workpieces. The ability to accurately control the vacuum level also allows operators to fine - tune the nitriding process according to the specific requirements of different materials, ensuring optimal surface modification. Additionally, the furnace’s gas flow control system can precisely meter the supply of nitriding gases, preventing waste and ensuring that the chemical reactions occur under the most favorable conditions.

The RHN vacuum nitriding furnace is designed with user - friendliness and efficiency in mind. It features an intuitive control interface, often with a touch - screen display, that allows operators to easily set process parameters, monitor real - time data, and initiate or stop the nitriding cycle. Advanced models may include programmable recipe functions, enabling users to store and recall specific process settings for different materials or product requirements. This not only reduces setup time but also ensures process repeatability, crucial for mass production environments. The furnace also comes with comprehensive safety features, such as emergency stop buttons, over - temperature alarms, and gas leak detection systems, safeguarding both operators and equipment.

The applications of the RHN vacuum nitriding furnace span across a wide range of industries. In the automotive industry, it is widely used to nitride engine components like crankshafts, camshafts, and transmission gears. The enhanced surface properties provided by the vacuum nitriding process improve the durability and performance of these parts, reducing wear and tear and extending their service life. In the mold - making industry, the furnace helps in treating molds to increase their hardness and resistance to abrasion, resulting in higher - quality molded products and reduced maintenance costs. The medical device industry also benefits from the RHN vacuum nitriding furnace, as it can be used to modify the surface properties of surgical instruments and implants, enhancing their biocompatibility and wear resistance.

From an economic and environmental perspective, the RHN vacuum nitriding furnace offers significant benefits. Its precise process control reduces the occurrence of product defects, minimizing rework and scrap rates, which in turn saves production costs. The vacuum - based process also consumes less nitriding gas compared to traditional nitriding methods, reducing material waste and operational expenses. Moreover, many RHN vacuum nitriding furnaces are designed with energy - efficient heating elements and insulation systems, contributing to lower energy consumption and a reduced carbon footprint.

In conclusion, the RHN vacuum nitriding furnace is an indispensable asset for industries seeking to elevate the quality and performance of their materials through advanced surface treatment. With its innovative vacuum - assisted nitriding technology, precise process control, user - friendly operation, and wide - ranging applications, it provides a reliable and efficient solution for achieving superior nitriding results. Whether it’s for manufacturing high - performance components in aerospace or improving the durability of molds in the tooling industry, the RHN vacuum nitriding furnace is the key to unlocking enhanced material properties and maintaining a competitive edge in the market.
