Key Features and Advantages
The SHQF furnace supports multiple Heat treatment processes within a single unit, including annealing, tempering, hardening, carburizing, nitriding, and stress relief. This versatility reduces the need for multiple specialized furnaces, saving floor space and investment costs.
By precisely controlling the furnace atmosphere, the SHQF prevents common issues like oxidation, decarburization, and contamination, thus preserving the integrity and surface finish of treated components.
The furnace is engineered to maintain uniform temperature distribution within ±3°C or better across the work chamber, ensuring consistent material properties throughout the batch.
Optimized insulation materials and intelligent heating element control reduce energy consumption, making the SHQF furnace an environmentally friendly and cost-effective option.
With programmable logic controllers (PLCs) and touchscreen interfaces, operators can easily set and monitor process parameters, ensuring repeatability and minimizing human error.
Integrated sensors and alarms monitor temperature, pressure, and gas flow, protecting operators and equipment from hazardous conditions.
The SHQF furnace finds extensive use across various industries due to its adaptability and performance:
Aerospace Industry: Heat treatment of turbine blades, engine components, and structural alloys to enhance fatigue resistance and strength.
Automotive Sector: Processing of gears, shafts, and other drivetrain components requiring precise hardness and wear resistance.
Metal Fabrication: Annealing and tempering of stainless steel, tool steel, and specialty alloys to optimize machinability and durability.
Electronics: Controlled atmosphere annealing for semiconductor materials and magnetic components.
Research and Development: Ideal for material scientists conducting experimental heat treatment cycles under various controlled atmospheres.
Foundation: Ensure a stable, vibration-free foundation to maintain furnace alignment and performance.
Ventilation: Proper ventilation systems are crucial for removing exhaust gases and maintaining safe working environments.
Gas Supply: Use high-purity gases and install proper regulators and flow meters for accurate atmosphere control.
Electrical Supply: Confirm that power supply matches furnace requirements to avoid damage or inefficiency.
Regular Inspection: Check heating elements, insulation integrity, and gas seals to detect wear or damage early.
Calibration: Periodically calibrate temperature controllers and gas flow sensors to maintain process accuracy.
Cleaning: Keep the furnace chamber and atmosphere lines clean to avoid contamination.
Software Updates: Ensure the control system software is up to date for enhanced performance and new features.
Atmosphere Leakage: Leaks can introduce oxygen, leading to oxidation. Regular gasket replacement and seal inspections help prevent this.
Heating Element Failure: Caused by overheating or contamination; avoid abrupt temperature changes and maintain a clean environment.
Temperature Fluctuations: Usually due to sensor faults or controller issues; maintain and calibrate equipment regularly.
Gas Purity Issues: Use certified gas sources and filtration to prevent contamination and ensure process consistency.
Selecting the SHQF furnace means investing in a reliable, adaptable, and efficient heat treatment solution that offers:
Comprehensive atmospheric control for superior material quality.
Multi-functional use to cover a broad range of heat treatment needs.
Energy-saving technology aligned with sustainable manufacturing goals.
User-friendly operation, minimizing training time and errors.
Strong after-sales support and customizable options tailored to specific industrial requirements.
The SHQF Atmosphere Multi-purpose Furnace stands as a cutting-edge solution for modern heat treatment challenges. Its combination of flexible atmospheric control, high temperature uniformity, and multi-process capability makes it indispensable for industries demanding high precision and quality. By investing in the SHQF furnace, manufacturers gain enhanced product performance, reduced operational costs, and greater process reliability.
If you are seeking to optimize your heat treatment operations with a furnace that meets the highest standards of technology and efficiency, the SHQF Atmosphere Multi-purpose Furnace is an excellent choice.

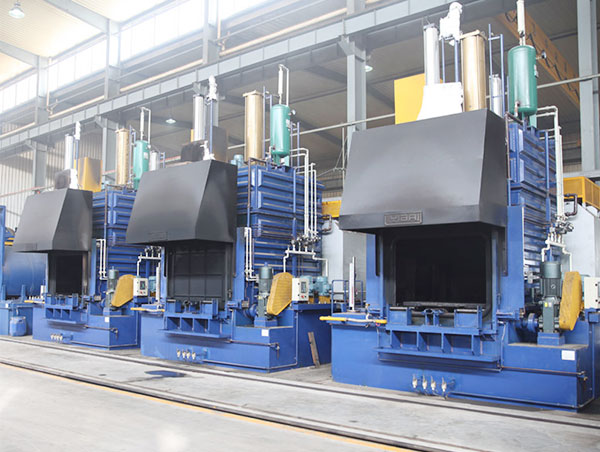

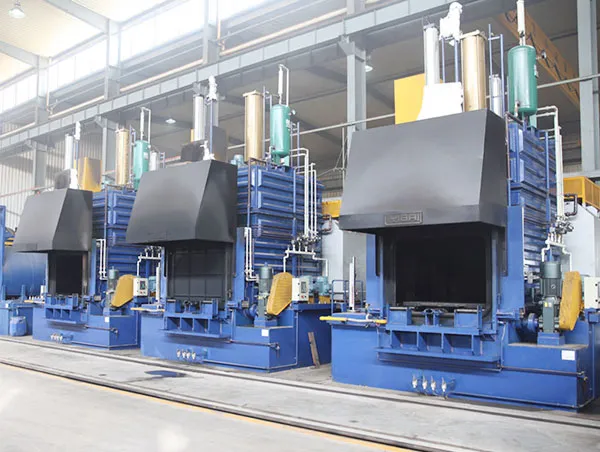

SHQF Controllable Atmosphere Sealed Box - Type Multi - Purpose Furnace Production Line
1. Introduction
In the dynamic landscape of industrial thermal processing equipment manufacturing, the SHQF controllable atmosphere sealed box - type multi - purpose furnace production line stands as a paragon of innovation and efficiency. Engineered to produce high - performance furnaces that can precisely control the internal atmosphere during various thermal treatment processes, this production line caters to a wide spectrum of industries, including aerospace, electronics, metallurgy, and materials research. The ability to create and maintain specific gas environments within the furnace chamber is crucial for achieving desired material properties, and the SHQF production line is designed to ensure consistent quality and reliability in every manufactured furnace.
2. Key Components of the Production Line
2.1 Raw Material Preparation Section
The production process commences with the meticulous preparation of raw materials. High - grade stainless steel or specialized alloy sheets are sourced for constructing the furnace body, chosen for their excellent corrosion resistance, strength, and durability. Insulation materials, such as high - density ceramic fiber boards or refractory bricks with low thermal conductivity, are also procured. These materials play a vital role in minimizing heat loss and maintaining the integrity of the internal temperature and atmosphere.
In this section, the raw materials undergo cutting and shaping operations. CNC (Computer Numerical Control) cutting machines are employed to precisely cut the steel sheets into the required shapes and sizes for the furnace body components. Advanced laser cutting technology may be utilized for more intricate cuts, ensuring high precision and accuracy. The insulation materials are also cut and shaped to fit snugly within the furnace structure, providing optimal thermal insulation.
2.2 Component Manufacturing Area
2.2.1 Furnace Body Fabrication
The fabricated steel components are then assembled to form the furnace body. Welding is a critical process here, with highly skilled welders or automated welding robots using techniques like TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding. These methods ensure strong, airtight welds that are essential for maintaining the sealed environment of the furnace. After welding, the furnace body undergoes surface treatment, including grinding and polishing, to remove any burrs, irregularities, and to enhance its corrosion resistance.
2.2.2 Heating Element Production
High - performance heating elements, typically made from materials such as nickel - chromium (Ni - Cr) alloys or iron - chromium - aluminum (Fe - Cr - Al) alloys, are manufactured in a dedicated area. The production process involves extrusion, winding, and heat - treatment to shape the elements and optimize their electrical and thermal properties. Stringent quality control measures are in place to ensure that each heating element meets the required specifications for resistance, temperature - bearing capacity, and durability.
2.2.3 Atmosphere Control System Component Manufacturing
The components of the atmosphere control system, including gas storage tanks, regulators, mass flow controllers, and gas delivery pipes, are fabricated with precision. Gas storage tanks are constructed from sturdy materials to withstand high - pressure gas storage. Regulators and mass flow controllers are manufactured using advanced machining and calibration techniques to ensure accurate gas flow control. The gas delivery pipes are made of corrosion - resistant materials and are precisely sized and shaped for efficient gas transmission within the furnace.
2.2.4 Control System Assembly
The control system, which is the brain of the furnace, is assembled with great care. It includes temperature controllers, programmable logic controllers (PLCs), sensors, and other electrical components. These components are carefully selected for their high accuracy, reliability, and compatibility. The assembly process involves wiring, soldering, and programming the control system to enable seamless integration with the furnace and precise control over temperature, atmosphere, and other operational parameters.
2.3 Assembly Line
The various components manufactured in the previous sections are transported to the assembly line for integration. The furnace body is placed on the assembly line first, followed by the installation of heating elements. The heating elements are strategically positioned within the furnace chamber to ensure uniform heat distribution. Next, the atmosphere control system components are installed, with gas storage tanks connected to the regulators and mass flow controllers, and gas delivery pipes routed to the furnace chamber.
The control system is then integrated into the furnace, with all electrical connections carefully made. The entire assembly is subjected to a series of checks during the assembly process to ensure that all components are properly installed and functioning. Doors, viewing windows, and safety devices are also added at this stage to complete the basic structure of the furnace.
2.4 Testing and Quality Control Zone
After assembly, each furnace undergoes a comprehensive series of tests in the testing and quality control zone. Electrical tests are conducted to check for short circuits, proper functionality of the control system, and compliance with electrical safety standards. Airtightness tests are performed to ensure that the furnace chamber maintains a sealed environment. This is crucial for the controllable atmosphere feature, as any leakage could compromise the integrity of the internal gas environment.
Temperature - rising tests are carried out to verify that the furnace can reach and maintain the required temperature range with high precision. The atmosphere control system is also tested to ensure accurate gas flow control and the ability to maintain the desired gas composition within the chamber. Only after passing all these rigorous tests does the furnace proceed to the next stage.
2.5 Packaging and Shipment Area
Once the furnace has successfully passed all quality control tests, it is moved to the packaging and shipment area. The furnace is carefully wrapped in protective materials, such as bubble wrap or foam, to prevent damage during transportation. It is then placed in a sturdy wooden crate or metal container for added protection. All necessary documentation, including operation manuals, warranty certificates, and test reports, is included with the packaged furnace.
The packaged furnaces are then loaded onto trucks, ships, or other transportation vehicles for delivery to customers. The production line coordinates closely with logistics providers to ensure timely and safe delivery of the products to their destinations across different regions and industries.
3. Technological Innovations in the Production Line
3.1 Automation and Robotics
The SHQF production line leverages a high degree of automation and robotics to enhance efficiency and precision. Automated CNC machines are used for raw material cutting and shaping, reducing human error and increasing production speed. Robotic arms are employed in the welding process, ensuring consistent and high - quality welds. In the assembly line, robots can handle tasks such as component installation, reducing the need for manual labor and improving the overall assembly accuracy.
Automated inspection systems, equipped with sensors and cameras, are integrated into the production line. These systems can detect defects in components and assemblies in real - time, enabling immediate corrective actions. This not only improves the quality of the final products but also reduces production waste and downtime.
3.2 Digitalization and Smart Manufacturing
Digitalization plays a crucial role in the SHQF production line. A digital twin of the entire production process and each furnace is created, allowing for virtual simulation and optimization. This digital twin technology enables manufacturers to predict potential issues, test new designs and processes, and improve overall production efficiency before implementing changes in the physical production line.
The production line is also connected through the Internet of Things (IoT). Sensors are installed on various equipment and components to collect real - time data on production parameters, equipment performance, and energy consumption. This data is analyzed using artificial intelligence (AI) and machine learning algorithms to optimize production schedules, identify areas for improvement, and enhance the overall productivity and quality of the production line.
3.3 Energy - efficient Manufacturing Processes
In an effort to reduce environmental impact and lower production costs, the SHQF production line incorporates energy - efficient manufacturing processes. Energy - saving equipment, such as high - efficiency motors in CNC machines and energy - efficient lighting systems, is used throughout the production line. Waste heat recovery systems are also installed in areas where heat is generated during the manufacturing process, such as in the heating element production and furnace testing. This recovered heat can be reused for other processes, further improving energy efficiency.
4. Advantages of the SHQF Production Line
4.1 High - quality Product Output
The combination of advanced manufacturing technologies, strict quality control measures, and skilled personnel ensures that the SHQF production line consistently produces high - quality furnaces. The precision in component manufacturing, assembly, and testing results in furnaces that offer reliable performance, accurate temperature control, and precise atmosphere regulation. This high - quality output meets the stringent requirements of various industries, enhancing customer satisfaction and the reputation of the manufacturer.
4.2 Increased Productivity
The automation and digitalization features of the production line significantly boost productivity. Automated processes can operate continuously without fatigue, reducing production lead times. The use of digital tools for process optimization and real - time monitoring allows for quick adjustments, minimizing downtime and maximizing the throughput of the production line. As a result, the SHQF production line can meet high - volume orders in a timely manner, giving manufacturers a competitive edge in the market.
4.3 Cost - effectiveness
By streamlining the production process, reducing waste, and improving energy efficiency, the SHQF production line achieves significant cost savings. Economies of scale are realized through high - volume production, and the use of automation reduces labor costs. The ability to detect and correct defects early in the production process also minimizes the cost of rework and scrap. These cost savings are ultimately reflected in the price of the furnaces, making them more affordable for customers while maintaining high - quality standards.
4.4 Customization Capability
The SHQF production line is designed to be flexible, enabling the customization of furnaces according to customer requirements. Whether it is adjusting the size of the furnace chamber, modifying the temperature range, or customizing the atmosphere control system for specific gas requirements, the production line can accommodate a wide variety of customization requests. This customization capability allows manufacturers to meet the diverse and unique needs of different customers across various industries, expanding their market reach.
5. Future Developments
5.1 Further Integration of Advanced Technologies
In the future, the SHQF production line is likely to see even deeper integration of advanced technologies. The development of more intelligent robots with enhanced capabilities, such as improved vision and manipulation skills, will further automate complex assembly and inspection tasks. AI and machine learning algorithms will become more sophisticated, enabling more accurate prediction of equipment failures, optimization of production processes, and improvement of product quality. The integration of 5G technology will also enhance the speed and reliability of data transfer within the production line, enabling more seamless communication between different components and systems.
5.2 Focus on Sustainable Manufacturing
With growing global concerns about the environment, the SHQF production line will place an increasing emphasis on sustainable manufacturing practices. This may involve the use of more recycled and eco - friendly materials in furnace production, the development of more energy - efficient manufacturing processes, and the implementation of waste reduction and recycling programs. Manufacturers will also explore ways to make the entire life cycle of the furnaces more sustainable, from production to end - of - life disposal, to meet the evolving environmental requirements and expectations of customers.
5.3 Enhanced Customer - centric Features
To stay competitive in the market, the SHQF production line will focus on developing more customer - centric features. This could include the creation of user - friendly interfaces for furnace control systems, more comprehensive after - sales services, and the ability to provide remote monitoring and maintenance support. By understanding and meeting the specific needs and pain points of customers, manufacturers can enhance customer loyalty and satisfaction, driving the growth and success of the SHQF production line in the long term.
