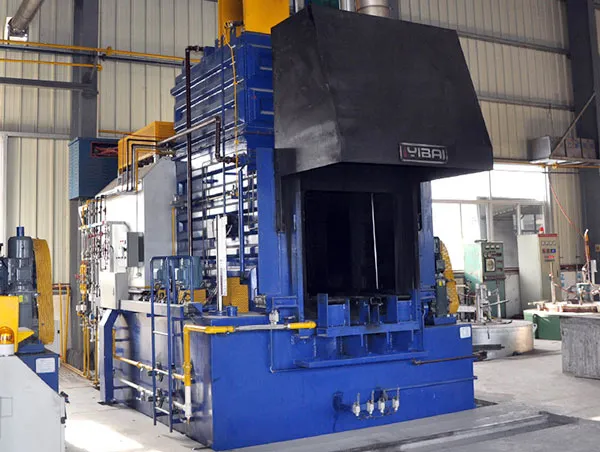

The SHQF sealed Box-type multi-purpose furnace is a cutting-edge Heat treatment furnace designed to deliver precise, uniform, and energy-efficient thermal processing for a wide range of industrial applications. Built with advanced sealed box-type construction and versatile multi-purpose capabilities, the SHQF furnace is engineered to handle processes such as carburizing, nitriding, annealing, tempering, and quenching under fully controllable atmospheres. This comprehensive heat treatment solution optimizes production workflows, improves material properties, and reduces operational costs.
Trusted by manufacturers in automotive, aerospace, tooling, and general engineering sectors, the SHQF furnace combines robust mechanical design with intelligent control systems to ensure superior process repeatability and product quality. This article provides an in-depth overview of the SHQF furnace's features, applications, technical specifications, and benefits, designed to assist purchasing managers, process engineers, and industry professionals in selecting the ideal heat treatment equipment.
The SHQF furnace employs a sealed box-type structure that significantly enhances heat retention and atmosphere control. This construction minimizes gas leakage and contamination, providing:
Uniform temperature distribution for consistent metallurgical outcomes
Improved energy efficiency through reduced heat loss
Environmentally friendly operation by containing and recycling process gases
Its robust sealed design is particularly suitable for Heat treatment processes sensitive to atmospheric contamination, such as carburizing and nitriding.
One of the core advantages of the SHQF furnace is its ability to maintain a fully controllable atmosphere inside the heat treatment chamber. Operators can select and regulate protective gases such as nitrogen, endothermic gas, or ammonia based on the specific process requirements. The system features:
Precise gas flow and composition control
Automated atmosphere switching for multi-process workflows
Effective prevention of oxidation, decarburization, and surface defects
This technology ensures metallurgical integrity and enhances surface quality across various heat treatment applications.
The SHQF furnace supports multiple heat treatment processes within a single system, including:
Carburizing and carbonitriding: Surface hardening processes to improve wear resistance
Nitriding: Enhancing surface hardness and fatigue strength without quenching
Annealing and normalizing: Refining microstructure and relieving internal stresses
Tempering: Adjusting mechanical properties post-quenching
Quenching: Rapid cooling with gas or oil to achieve desired hardness
This multi-functionality allows manufacturers to consolidate operations, save floor space, and reduce equipment investments.
Equipped with modern PLC control and HMI touchscreen interfaces, the SHQF furnace delivers precise temperature regulation with programmable profiles up to 1200°C. Features include:
Multi-zone heating elements for even thermal distribution
PID temperature control ensuring ±2°C accuracy
Real-time data logging and process monitoring
Alarm systems for over-temperature, gas leak, and safety breaches
Such control facilitates repeatable, high-quality heat treatments compliant with industry standards.
The SHQF furnace incorporates energy-saving designs such as:
High-performance refractory insulation materials
Low thermal mass chamber lining
Optional heat recovery systems
Variable frequency drives for fans and pumps
Together, these features reduce energy consumption, lower carbon emissions, and support sustainable manufacturing goals.
| Parameter | Specification |
|---|---|
| Furnace Type | sealed box-type multi-purpose furnace |
| Maximum Operating Temperature | Up to 1200°C |
| Temperature Uniformity | ±2°C |
| Chamber Dimensions (W×D×H) | Customizable; typical 900×1200×800 mm |
| Heating Method | Electric resistance / gas-fired options |
| Atmosphere | Nitrogen, endothermic gas, ammonia |
| Control System | PLC with HMI touchscreen interface |
| Cooling Method | Gas or oil quenching options |
| Power Supply | Customized per customer requirements |
| Energy Saving Features | Insulation, heat recovery, VFD motors |
The SHQF furnace is ideal for heat treating components such as gears, camshafts, crankshafts, and bearings. Its precise atmosphere and temperature controls reduce scaling and distortion, thereby enhancing fatigue resistance and surface hardness critical for automotive performance.
Aerospace components require exceptional metallurgical standards. The SHQF furnace’s controllable atmosphere prevents surface degradation of turbine blades, structural alloys, and precision parts, ensuring long service life under extreme operating conditions.
Tool steels and high-speed steels benefit from the SHQF furnace’s multi-purpose capabilities. Heat treatment cycles improve tool hardness, toughness, and dimensional stability, extending tooling longevity and reducing downtime.
From metal castings to structural components, the SHQF furnace handles diverse heat treatment needs, including annealing and stress relieving to optimize material properties and reduce residual stresses.
Precise atmosphere and temperature control minimize surface defects such as oxidation, decarburization, and distortion. This leads to higher hardness uniformity and better metallurgical properties.
The ability to perform multiple heat treatment processes in one furnace reduces changeover time, equipment footprint, and capital expenditure.
Automation and process control reduce human errors and downtime. Programmable cycles and data logging support high throughput and traceability.
Optimized insulation and heating systems cut energy consumption by up to 30%, reducing operational costs and environmental impact.
Built-in safety interlocks, gas leak detectors, and emergency shutoffs ensure compliance with international safety standards, protecting both operators and equipment.
The SHQF furnace is designed for ease of use and maintenance. Operators benefit from:
User-friendly HMI for quick setup and monitoring
Remote diagnostics to troubleshoot issues without production halts
Modular components for quick replacement and servicing
Training and support from manufacturer for best practices
Regular maintenance schedules ensure optimal furnace performance and longevity.
Versatility: Supports a wide range of heat treatment processes in one system
Precision: Advanced atmosphere and temperature control for consistent results
Efficiency: Energy-saving design reduces costs and environmental footprint
Reliability: Durable construction for continuous industrial operation
Support: Comprehensive after-sales service, training, and technical assistance
The content is optimized for Google SEO using relevant keywords such as:
multi-purpose heat treatment furnace
controllable atmosphere furnace
industrial carburizing furnace
energy efficient heat treatment equipment
These keywords are naturally embedded in headings, paragraphs, and metadata to maximize search engine visibility.
The SHQF sealed box-type multi-purpose furnace stands out as a robust, flexible, and energy-efficient solution for advanced heat treatment applications. Its sealed design and controllable atmosphere capabilities ensure top-quality metallurgical outcomes while reducing operational costs and environmental impact.
Whether for automotive, aerospace, tooling, or heavy engineering applications, the SHQF furnace offers unmatched reliability and precision. Investing in this furnace equips manufacturers with the technology to meet the evolving demands of modern industry and maintain competitive advantage.
SHQF Sealed Box - type Multi - purpose Furnace: Unveiling Versatility and Precision
1. Introduction
The SHQF sealed box - type multi - purpose furnace stands as a testament to innovation in thermal processing technology. Engineered to address the diverse requirements of industries ranging from aerospace and automotive to electronics and materials research, this furnace combines the advantages of a sealed environment with unparalleled multi - functionality. Its design allows for precise control over temperature, atmosphere, and processing time, making it an ideal choice for a wide array of thermal treatment processes. This comprehensive introduction will explore the features, working principles, applications, advantages, and future prospects of the SHQF sealed box - type multi - purpose furnace.
2. Design Features
2.1 Sealed Box Structure
The core of the SHQF furnace lies in its sealed box - type construction. Crafted from high - grade stainless steel or specialized alloy materials, the furnace body provides exceptional durability and resistance to corrosion. The double - walled design of the box incorporates advanced insulation materials, such as ceramic fiber modules or high - density refractory bricks. These insulation materials possess extremely low thermal conductivity, minimizing heat loss during operation and ensuring that the outer surface of the furnace remains at a safe temperature. This not only enhances energy efficiency but also safeguards operators from potential burns.
The sealing mechanism of the SHQF furnace is highly sophisticated. The chamber door is equipped with high - temperature - resistant gaskets and a precision - engineered locking system. These components work in harmony to create an airtight seal, preventing the leakage of process gases and maintaining the integrity of the internal atmosphere. This sealed environment is crucial for processes that demand protection from oxidation, contamination, or require specific gas - phase reactions to occur.
2.2 Heating System
The heating system of the SHQF furnace is designed for both power and precision. It typically employs high - performance resistance heating elements, such as nickel - chromium (Ni - Cr) alloys or iron - chromium - aluminum (Fe - Cr - Al) alloys. These elements are strategically arranged on the side walls, top, and bottom of the furnace chamber to ensure uniform heat distribution. In some advanced models, the heating elements may be configured in a modular manner, allowing for easy replacement and maintenance.
The furnace is equipped with an advanced temperature control system. Multiple high - accuracy thermocouples or resistance temperature detectors (RTDs) are strategically placed within the chamber to monitor the temperature in real - time. A programmable logic controller (PLC) or a microprocessor - based control unit continuously compares the measured temperature with the pre - set values. Using sophisticated control algorithms, such as proportional - integral - derivative (PID) control, it precisely adjusts the power supplied to the heating elements, maintaining the temperature within a narrow tolerance range, often as low as ±1°C. This level of precision is essential for processes that are highly sensitive to temperature variations.
2.3 Atmosphere Control System
The SHQF furnace offers a comprehensive atmosphere control system, providing users with the flexibility to tailor the internal environment to their specific process requirements. The gas delivery system consists of gas storage tanks, regulators, and mass flow controllers. Users can introduce a variety of gases into the furnace chamber, including inert gases like nitrogen (N₂) and argon (Ar) to prevent oxidation, reducing gases such as hydrogen (H₂) for processes like reduction of metal oxides, and reactive gases for specialized chemical reactions. The mass flow controllers ensure that the gases are delivered at precisely controlled flow rates, enabling accurate control of the atmosphere composition.
In addition, the SHQF furnace can be equipped with a vacuum system. Rotary vane pumps or turbomolecular pumps can be used to evacuate the chamber, creating a low - pressure environment. This vacuum capability is invaluable for processes such as degassing, where removing trapped gases from materials is necessary, or for processes that are more effective under reduced - pressure conditions.
3. Working Principles
3.1 Temperature Control
When the SHQF furnace is in operation, the heating elements are activated based on the pre - programmed temperature profile. The thermocouples or RTDs continuously monitor the temperature within the chamber and send real - time data to the control unit. If the measured temperature deviates from the set - point, the control unit adjusts the power supplied to the heating elements. For example, if the temperature is lower than the set - point, the control unit increases the power to the heating elements, and vice versa. This closed - loop control system ensures that the temperature within the furnace chamber remains stable and accurate throughout the thermal treatment process.
3.2 Atmosphere Management
The atmosphere within the SHQF furnace is carefully managed to meet the requirements of different processes. Before starting a process, the desired gases are selected and their flow rates are set using the mass flow controllers. The gases are then introduced into the sealed chamber, displacing the existing air. Once the chamber is filled with the desired gas mixture, the system maintains the gas flow rate and composition throughout the process. In the case of processes that require a vacuum, the vacuum pump is activated to evacuate the chamber to the required pressure level. The atmosphere control system continuously monitors the gas composition and pressure within the chamber and makes adjustments as necessary to ensure optimal process conditions.
3.3 Process Cycling
The SHQF furnace can be programmed to perform a variety of process cycles, including heating, soaking, and cooling phases. During the heating phase, the furnace rapidly raises the temperature of the workpieces to the desired processing temperature. The soaking phase follows, during which the workpieces are held at the processing temperature for a specific period to allow for the desired chemical and physical changes to occur. Finally, the cooling phase begins, and the furnace can be configured to cool the workpieces at a controlled rate, either through natural cooling, forced - air cooling, or water - cooling, depending on the requirements of the process.
4. Applications
4.1 Aerospace Industry
In the aerospace sector, the SHQF furnace is used for heat - treating critical components such as turbine blades, landing gear parts, and structural elements. The precise temperature and atmosphere control offered by the furnace are essential for enhancing the strength, fatigue resistance, and durability of these components. For example, superalloys used in turbine blades can be subjected to high - temperature annealing and aging processes in the SHQF furnace to optimize their microstructure and mechanical properties, ensuring they can withstand the extreme conditions of flight.
4.2 Electronics Manufacturing
For electronics manufacturing, the SHQF furnace plays a vital role in processes such as the annealing of printed circuit boards (PCBs) to relieve stresses induced during assembly, and the heat treatment of semiconductor devices to improve their performance and reliability. The ability to create a clean and controlled environment is crucial for preventing contamination that could affect the functionality of electronic components. The furnace can also be used for the sintering of ceramic substrates and the bonding of electronic materials, enabling the production of high - quality electronic products.
4.3 Materials Research
In materials research laboratories, the SHQF furnace is an indispensable tool. Scientists use it to study the effects of different thermal processes on the properties of new materials, develop novel synthesis methods, and optimize existing materials. Its versatility allows for experimentation with a wide range of materials, from polymers and composites to advanced metals and ceramics. For example, researchers can use the furnace to conduct high - temperature sintering experiments to fabricate new ceramic materials with improved mechanical and electrical properties.
4.4 Metalworking and Toolmaking
In the metalworking and toolmaking industries, the SHQF furnace is employed for processes such as hardening and tempering of cutting tools, dies, and molds. By precisely controlling the heat treatment process, manufacturers can produce tools with enhanced wear resistance and longer service life. The furnace can also be used for the case hardening of steel components, where a hard surface layer is formed while maintaining a tough core, improving the overall performance of the parts.
5. Advantages
5.1 High - quality Results
The precise control over temperature, atmosphere, and processing time in the SHQF furnace ensures consistent and high - quality results. This is particularly important for industries where the performance and reliability of products depend on the accuracy of the thermal treatment process. The ability to maintain a stable and uniform temperature within the chamber, along with the precise control of the atmosphere, enables the production of components with excellent mechanical, physical, and chemical properties.
5.2 Versatility
The multi - purpose functionality of the SHQF furnace eliminates the need for multiple specialized furnaces, saving space and reducing capital investment. A single SHQF furnace can handle a wide variety of thermal processes and materials, making it a cost - effective solution for businesses with diverse thermal processing needs. Its modular design and adjustable operating parameters allow for easy customization to meet the specific requirements of different applications.
5.3 Energy Efficiency
The advanced insulation and efficient heating system of the SHQF furnace contribute to its energy - saving capabilities. By reducing heat loss and optimizing the heating process, the furnace consumes less energy compared to less - sophisticated models, resulting in lower operational costs. The ability to program precise temperature profiles also helps to minimize energy waste by ensuring that the furnace operates only as needed to achieve the desired processing results.
5.4 Safety
The SHQF furnace is designed with safety as a top priority. Features such as over - temperature protection, pressure relief valves, and gas leakage detection systems ensure the safety of operators and the surrounding environment. The sealed structure of the furnace minimizes the risk of exposure to hazardous gases and high temperatures, and the intuitive control interface provides clear instructions and warnings to prevent operator errors.
6. Future Prospects
6.1 Integration of Smart Technologies
The future of the SHQF furnace is likely to see the integration of smart technologies such as the Internet of Things (IoT), artificial intelligence (AI), and machine learning. IoT - enabled sensors can be installed within the furnace to collect real - time data on temperature, atmosphere, and equipment performance. This data can be analyzed using AI and machine learning algorithms to optimize the thermal treatment process, predict maintenance needs, and improve overall efficiency. Remote monitoring and control capabilities will also be enhanced, allowing operators to manage the furnace from anywhere in the world.
6.2 Development of Advanced Materials and Processes
As new materials and manufacturing processes are developed, the SHQF furnace will need to adapt to meet the changing requirements. Research is likely to focus on developing new heating elements, insulation materials, and atmosphere control systems that can handle the unique properties of advanced materials. For example, the development of new ceramic matrix composites and nanomaterials will require precise thermal treatment conditions, and the SHQF furnace will need to be optimized to meet these demands.
6.3 Energy - saving and Environmental - friendly Improvements
With increasing concerns about energy consumption and environmental impact, there will be a greater emphasis on developing energy - saving and environmental - friendly features for the SHQF furnace. This may include the use of renewable energy sources, such as solar or wind power, to operate the furnace, as well as the development of more efficient insulation materials and heating systems. The reduction of waste generation and the implementation of recycling programs for used furnace components will also be important areas of focus.
In conclusion, the SHQF sealed box - type multi - purpose furnace is a highly versatile and reliable piece of equipment that has made a significant impact on various industries. Its advanced design, precise control capabilities, and wide range of applications make it an essential tool for modern thermal processing. With the continuous development of technology, the SHQF furnace is expected to evolve further, meeting the future needs of industries and contributing to the advancement of materials science and manufacturing.
