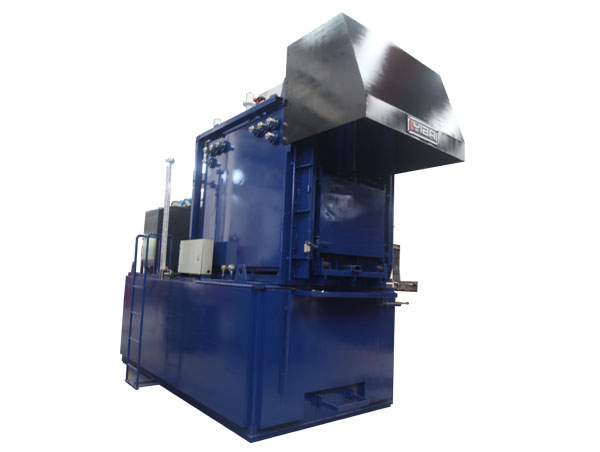

Single - liquid Vacuum Cleaning machine: Principles, Applications, and Advancements

1. Introduction

In the modern era of industrial manufacturing, electronics production, and precision engineering, the demand for highly efficient and precise cleaning technologies has reached new heights. The single - liquid vacuum cleaning machine has emerged as a critical piece of equipment in meeting these stringent cleaning requirements. This type of cleaning machine utilizes a single cleaning liquid within a vacuum - sealed environment to achieve superior cleaning results, eliminating contaminants that can compromise the performance and quality of products. This comprehensive 3000 - word description will explore its definition, working principles, structural components, key technologies, applications, advantages, challenges, and future trends.

2. Definition and Basic Concept

A single - liquid vacuum cleaning machine is a specialized cleaning device that uses a single type of cleaning liquid (such as hydrocarbon solvents, aqueous - based solutions, or specialized chemical cleaners) in a vacuum - created chamber. The vacuum environment plays a crucial role in enhancing the cleaning process by reducing the boiling point of the cleaning liquid, facilitating better penetration of the liquid into micro - crevices and pores of the objects being cleaned, and improving the overall efficiency of contaminant removal.

3. Working Principles

3.1 Vacuum - enhanced Cleaning

The vacuum environment significantly alters the physical properties of the cleaning liquid. Under reduced pressure, the boiling point of the liquid decreases. For example, water that boils at 100°C under normal atmospheric pressure can boil at much lower temperatures in a vacuum. This allows the cleaning liquid to vaporize more easily and penetrate deep into the tiny gaps and pores of the objects, reaching areas that are difficult to access under normal pressure conditions.

The vacuum also reduces the presence of air bubbles and gas pockets within the cleaning liquid. In a non - vacuum environment, air bubbles can act as barriers, preventing the cleaning liquid from fully contacting the surface of the contaminants. In a vacuum, these bubbles are eliminated, ensuring that the cleaning liquid can directly interact with the dirt, grease, or other impurities on the object's surface.

3.2 Interaction of Cleaning Liquid with Contaminants

The single cleaning liquid used in these machines is carefully formulated to have specific chemical properties that enable it to dissolve, emulsify, or disperse different types of contaminants. For instance, hydrocarbon - based solvents are excellent at dissolving organic contaminants such as oils, greases, and waxes. When the cleaning liquid comes into contact with these contaminants in the vacuum - sealed chamber, it breaks them down into smaller molecules, making them easier to remove.

In the case of aqueous - based cleaning liquids, surfactants are often added. These surfactants reduce the surface tension of the water, allowing it to spread more evenly over the object's surface and penetrate into crevices. They also help to emulsify oily contaminants, forming stable mixtures that can be easily rinsed away.

3.3 Drying and Recovery Processes

After the cleaning process, the vacuum environment is also utilized for the drying stage. With the reduced pressure, the evaporation rate of the cleaning liquid increases, enabling rapid drying of the cleaned objects. This is particularly important for preventing water spots or residue formation, especially in applications where high - precision cleanliness is required.

Most single - liquid vacuum cleaning machines are equipped with a liquid recovery system. The used cleaning liquid, now containing dissolved or dispersed contaminants, is collected and processed. Through methods such as distillation or filtration, the contaminants are separated from the cleaning liquid, which can then be reused, reducing waste and costs.

4. Structural Components

4.1 Vacuum Chamber

The vacuum chamber is the core component of the machine, where the cleaning process takes place. It is typically made of high - strength, corrosion - resistant materials such as stainless steel to withstand the pressure differences during the vacuum - creating process and the chemical action of the cleaning liquid. The chamber is designed with an air - tight seal to ensure that the vacuum can be maintained effectively. It also features access doors or hatches for loading and unloading the objects to be cleaned, which are equipped with reliable sealing mechanisms.

4.2 Vacuum Pump System

The vacuum pump system is responsible for creating and maintaining the vacuum within the chamber. There are various types of vacuum pumps that can be used, including rotary vane pumps, diaphragm pumps, and turbomolecular pumps. Rotary vane pumps are commonly used for their relatively high pumping speed and ability to handle a certain amount of moisture and debris. Diaphragm pumps are suitable for applications where chemical resistance is crucial, as they have fewer moving parts in contact with the pumped gas. Turbomolecular pumps are often employed when extremely high vacuum levels are required, such as in semiconductor manufacturing applications.

4.3 Cleaning Liquid Circulation System

This system consists of a reservoir for storing the cleaning liquid, pumps for circulating the liquid, and a network of pipes and nozzles. The pumps draw the cleaning liquid from the reservoir and distribute it evenly over the objects in the vacuum chamber through the nozzles. The liquid can be circulated continuously during the cleaning process to ensure that fresh cleaning liquid is constantly in contact with the contaminants. Some advanced systems may also include a heating element in the circulation system to control the temperature of the cleaning liquid, as higher temperatures can enhance the cleaning performance for certain types of contaminants.

4.4 Filtration and Recovery System

The filtration system is used to remove solid particles and debris from the used cleaning liquid before it is sent for recovery. It typically includes multiple stages of filtration, such as coarse filters to remove large particles and fine filters to capture smaller contaminants. After filtration, the cleaning liquid is transferred to the recovery system. In the case of hydrocarbon solvents, distillation is a common recovery method. The solvent is heated in a distillation unit, and the vapor is condensed back into a liquid, leaving the contaminants behind. For aqueous - based solutions, reverse osmosis or ion - exchange processes may be used to purify the liquid for reuse.

4.5 Control System

The control system of a single - liquid vacuum cleaning machine is responsible for managing all aspects of the cleaning process. It includes a user interface, usually in the form of a touch - screen or control panel, where operators can set parameters such as vacuum level, cleaning time, liquid temperature, and circulation rate. The control system also monitors the status of the machine, such as the vacuum pressure, liquid level in the reservoir, and the operation of the pumps and filters. In case of any malfunctions or deviations from the set parameters, the control system can trigger alarms and take corrective actions, such as shutting down the machine to prevent damage.

5. Key Technologies

5.1 Vacuum Sealing Technology

Maintaining a high - quality vacuum seal is essential for the proper functioning of the cleaning machine. Advanced sealing materials and techniques are used to ensure that there are no leaks in the vacuum chamber. O - rings made of high - performance elastomers, such as Viton or silicone, are commonly used for static seals. For dynamic seals, such as those around moving parts like doors or rotating shafts, mechanical seals or lip seals are employed. These seals are designed to withstand the pressure differences and chemical exposure within the chamber, ensuring that the vacuum integrity is not compromised.

5.2 Liquid - handling Technology

The ability to handle the cleaning liquid effectively is crucial. This involves precise control of the liquid flow rate, pressure, and temperature. Advanced pumps with variable - speed drives are used to adjust the liquid circulation according to the cleaning requirements. Temperature - control systems, such as PID (Proportional - Integral - Derivative) controllers, are employed to maintain the cleaning liquid at the optimal temperature for maximum cleaning efficiency. Additionally, techniques for preventing liquid foaming, especially in the case of aqueous - based solutions with surfactants, are also an important aspect of liquid - handling technology.

5.3 Automation and Monitoring Technology

Modern single - liquid vacuum cleaning machines are highly automated. PLC (Programmable Logic Controller) or advanced computer - based control systems are used to execute complex cleaning programs. Sensors are installed throughout the machine to monitor various parameters in real - time. For example, pressure sensors measure the vacuum level, temperature sensors monitor the liquid and chamber temperature, and flow sensors track the liquid circulation rate. The data collected by these sensors is analyzed by the control system, which can then make adjustments to the cleaning process to ensure consistent and high - quality results.

6. Applications

6.1 Semiconductor Manufacturing

In the semiconductor industry, even the tiniest contaminants can cause significant defects in chips. Single - liquid vacuum cleaning machines are used to clean silicon wafers, removing particles, organic residues, and metal contaminants. The vacuum environment ensures that the cleaning liquid can penetrate the minute features on the wafer surface, such as trenches and vias, providing a thorough clean. This is essential for maintaining the performance and yield of semiconductor devices.

6.2 Electronics Assembly

For printed circuit boards (PCBs) and electronic components, single - liquid vacuum cleaning machines are used to remove flux residues, soldering debris, and other contaminants after the assembly process. The precise cleaning provided by these machines helps to prevent electrical failures and improve the reliability of electronic products. The ability to dry the components quickly in the vacuum also reduces the risk of corrosion.

6.3 Precision Mechanics and Optics

In the manufacturing of precision mechanical parts, such as watch components, bearings, and high - precision gears, and optical components like lenses and prisms, single - liquid vacuum cleaning machines ensure that there are no residues or contaminants that could affect the performance or optical properties. The vacuum - enhanced cleaning process can reach the intricate geometries of these parts, providing a high - quality clean without causing any damage.

6.4 Medical Device Manufacturing

Medical devices require strict cleanliness standards to ensure patient safety. Single - liquid vacuum cleaning machines are used to clean surgical instruments, implants, and other medical devices, removing biological contaminants, manufacturing residues, and ensuring that the devices are free from any substances that could cause infections or adverse reactions.

7. Advantages

7.1 Superior Cleaning Performance

The combination of the vacuum environment and the specialized cleaning liquid allows for more effective removal of contaminants compared to traditional cleaning methods. The ability to reach deep into micro - structures and pores ensures a thorough clean, which is essential for high - precision applications.

7.2 Reduced Chemical Usage

Since the cleaning liquid can be recovered and reused through the filtration and recovery system, the overall consumption of cleaning chemicals is significantly reduced. This not only saves costs but also reduces the environmental impact associated with chemical disposal.

7.3 Consistent Results

The automated control and monitoring systems ensure that the cleaning process is highly repeatable. This consistency in cleaning results is crucial for mass - production industries, where product quality must be maintained across all batches.

7.4 Gentle on Components

The vacuum - based cleaning process is relatively gentle and does not cause mechanical damage to the objects being cleaned, making it suitable for delicate components and materials.

8. Challenges

8.1 High Initial Investment

The cost of purchasing a single - liquid vacuum cleaning machine, especially those with advanced features and capabilities, can be quite high. This includes the cost of the vacuum chamber, pumps, control systems, and liquid - handling components. Additionally, the installation and commissioning costs can also add to the overall expense, which may be a barrier for small and medium - sized enterprises.

8.2 Technical Expertise Requirements

Operating and maintaining a single - liquid vacuum cleaning machine requires a certain level of technical expertise. Operators need to understand how to set the appropriate cleaning parameters, troubleshoot common problems, and perform regular maintenance tasks. Training programs are often required to ensure that the staff can use the machine effectively, which adds to the operational cost.

8.3 Safety Concerns

Some cleaning liquids, especially hydrocarbon solvents, are flammable or toxic. In a vacuum environment, the risk of fire or explosion can be increased if proper safety measures are not in place. Additionally, exposure to these chemicals can pose health risks to the operators. Therefore, strict safety protocols, such as proper ventilation, fire suppression systems, and personal protective equipment, must be implemented.

8.4 Compatibility Issues

The cleaning liquid used in the machine must be compatible with the materials of the objects being cleaned. In some cases, certain chemicals may react with the materials, causing damage or degradation. Determining the right cleaning liquid for a specific application can be a complex process that requires careful testing and evaluation.

9. Future Trends

9.1 Integration of Smart Technologies

The future of single - liquid vacuum cleaning machines will likely involve greater integration of smart technologies such as artificial intelligence (AI) and the Internet of Things (IoT). AI - powered algorithms can be used to optimize the cleaning process based on real - time data, adjusting parameters such as vacuum level, liquid temperature, and cleaning time for the best results. IoT connectivity will enable remote monitoring and control of the machines, allowing for predictive maintenance and improving overall operational efficiency.

9.2 Development of Green Cleaning Liquids

There is a growing trend towards developing more environmentally friendly cleaning liquids. Research is focused on creating biodegradable solvents, low - VOC (Volatile Organic Compound) cleaning agents, and sustainable aqueous - based solutions. These green cleaning liquids will not only reduce the environmental impact but also address the safety concerns associated with traditional cleaning chemicals.

9.3 Miniaturization and Modular Design

For certain applications, especially in the research and development sector and small - scale manufacturing, there is a demand for smaller, more compact single - liquid vacuum cleaning machines. Miniaturization of the components and a modular design approach will make the machines more flexible and easier to integrate into existing production lines or laboratory setups.

9.4 Hybrid Cleaning Technologies

Combining single - liquid vacuum cleaning with other cleaning technologies, such as ultrasonic cleaning or plasma cleaning, is another emerging trend. Hybrid systems can leverage the advantages of multiple cleaning methods, providing even more effective and versatile cleaning solutions for a wide range of applications.

10. Conclusion

The single - liquid vacuum cleaning machine has become an indispensable tool in various industries that demand high - precision and efficient cleaning. Its unique working principles, advanced structural components, and key technologies enable it to deliver superior cleaning performance while also offering benefits such as reduced chemical usage and consistent results. Although it faces challenges such as high initial investment and safety concerns, ongoing technological advancements and the development of new trends are expected to further enhance its capabilities and expand its applications in the future. As industries continue to strive for higher quality and greater efficiency, the single - liquid vacuum cleaning machine will play an increasingly important role in the cleaning technology landscape.
