Comprehensive Guide to Supporting brick: Properties, Applications, and Benefits

Introduction

A supporting brick is a crucial component in the construction and maintenance of high-temperature industrial furnaces, kilns, and reactors. Designed to provide mechanical support and structural stability, supporting bricks are essential for maintaining the integrity and performance of refractory linings under extreme thermal, mechanical, and chemical stresses. They are widely used across various industries such as steelmaking, glass production, cement manufacturing, and petrochemical processing.

This comprehensive guide explores the definition, materials, manufacturing process, key properties, applications, installation, and maintenance of supporting bricks. It aims to provide engineers, procurement specialists, and industry professionals with in-depth knowledge for selecting and using supporting bricks effectively to enhance furnace reliability and operational efficiency.

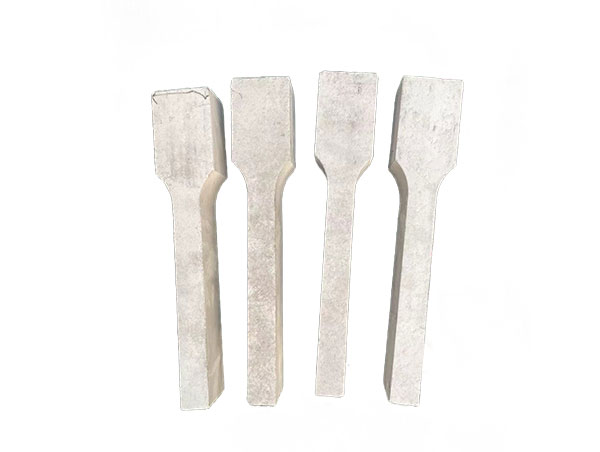

What is a Supporting Brick?

Supporting bricks, also known as support bricks or support blocks, are refractory bricks specifically engineered to bear load and maintain the shape of furnace linings. Unlike insulating bricks focused primarily on heat conservation, supporting bricks must withstand substantial mechanical loads, thermal shocks, and chemical attacks. They often form the structural base or framework that holds other refractory materials in place.

Materials and Types of Supporting Bricks

Supporting bricks are manufactured from high-quality refractory raw materials that provide exceptional mechanical strength and thermal stability. Common materials include:

• High Alumina Bricks: Contain 48% to 90% alumina (Al₂O₃), offering excellent strength and corrosion resistance.

• Fireclay Bricks: Made from fireclay with moderate alumina content, cost-effective for less demanding applications.

• Silica Bricks: High silica content bricks used in glass furnaces and high-temperature zones.

• Magnesia Bricks: Composed mainly of magnesium oxide (MgO), suitable for basic refractory environments.

• Corundum bricks: High-purity alumina bricks with superior hardness and wear resistance, used in extreme conditions.

• Specialty Bricks: Such as zirconia or carbon bricks for niche industrial uses.

Each type varies in refractory properties, including refractoriness, thermal conductivity, density, and chemical resistance.

Manufacturing Process of Supporting Bricks

1. Raw Material Preparation: Selection of high-purity minerals and additives.

2. Mixing and Forming: Raw materials mixed and formed into bricks using dry pressing, extrusion, or molding techniques.

3. Drying: Bricks are dried to remove moisture content.

4. Sintering: High-temperature firing (typically 1400°C to 1800°C) to achieve desired physical and chemical properties.

5. Quality Control: Testing for strength, refractoriness, dimensional accuracy, and chemical resistance.

6. Finishing: Machining or cutting for specific applications.

Key Properties of Supporting Bricks

• High Mechanical Strength: Capable of supporting heavy loads without deformation or failure.

• Thermal Stability: Resistant to high temperatures and thermal cycling to prevent cracking.

• Thermal Shock Resistance: Ability to withstand rapid temperature changes without damage.

• Chemical Resistance: Tolerant to slags, gases, and corrosive substances present in furnaces.

• Dimensional Stability: Maintains shape and size under thermal and mechanical stress.

• Density and Porosity: Optimized to balance strength and insulation performance.

Applications of Supporting Bricks

Steel Industry

Supporting bricks are extensively used in electric arc furnaces, ladles, and converters to support refractory linings that come into contact with molten steel and slag.

Glass Manufacturing

Glass melting furnaces require supporting bricks that resist corrosive molten glass and thermal fluctuations.

Cement Industry

Rotary kilns and preHeaters rely on supporting bricks to maintain structural integrity at elevated temperatures.

Petrochemical and Chemical Industries

Supporting bricks are used in reformers, reactors, and incinerators to withstand chemical attack and mechanical stresses.

Power Plants and Incinerators

They provide critical support for refractory linings exposed to high temperatures and abrasive flue gases.

Installation and Maintenance

• Proper Installation: Correct alignment and bonding with Refractory mortar are vital to prevent displacement.

• Regular Inspection: Monitor for cracks, spalling, or deformation.

• Thermal Management: Controlled heating and cooling cycles to reduce thermal shock.

• Repair and Replacement: Timely replacement of damaged bricks prevents furnace failure and downtime.

• Documentation: Maintain records of brick type, installation date, and maintenance activities.

Advantages of Using High-Quality Supporting Bricks

• Extended Furnace Life: Reduces frequency of repairs and replacements.

• Improved Safety: Structural stability minimizes risks of collapse or failure.

• Energy Efficiency: Proper support helps maintain effective insulation, reducing energy costs.

• Cost Savings: Lower maintenance and downtime expenses.

• Enhanced Performance: Stable refractory linings improve furnace operational consistency.

Quality Standards and Certifications

Supporting bricks must comply with international standards such as:

• ISO 9001: Quality management for manufacturing processes.

• ASTM C27: Specification for refractory fireclay shapes.

• DIN EN 1094: Standard for refractory bricks.

• GB/T 2186: Chinese national standard for refractory bricks.

SEO-Optimized Meta Description

Supporting brick is a high-strength refractory brick designed to provide structural stability and load-bearing capacity in industrial furnaces. Ideal for steel, glass, cement, and petrochemical applications.

Related Google SEO Keywords

• Supporting brick

• Refractory supporting brick

• High strength supporting brick

• Industrial furnace supporting brick

• Load bearing refractory brick

• High temperature supporting brick

Frequently Asked Questions (FAQs)

Q1: What materials are commonly used for supporting bricks?
A1: High alumina, fireclay, silica, magnesia, and corundum are common materials based on application requirements.

Q2: How do supporting bricks differ from insulating bricks?
A2: Supporting bricks focus on mechanical strength and load-bearing, while insulating bricks prioritize thermal insulation.

Q3: Can supporting bricks be custom-made?
A3: Yes, manufacturers often provide customized shapes, sizes, and compositions to meet specific furnace designs.

Q4: How often should supporting bricks be inspected?
A4: Regular inspections every 6 to 12 months are recommended, depending on furnace operation conditions.
