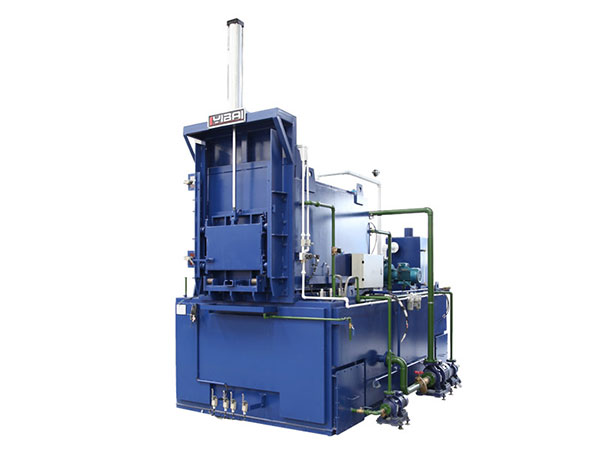

Ultrasonic Cleaning machine: Principles, Applications, and Advancements

1. Introduction

In an era where precision and cleanliness are paramount in numerous industries, Ultrasonic cleaning machines have emerged as indispensable tools. These devices leverage the power of ultrasonic waves to achieve highly efficient and thorough cleaning of a wide range of objects, from delicate jewelry and intricate electronic components to large industrial parts. This 2000 - word introduction will explore the fundamental principles, key components, diverse applications, advantages, challenges, and future trends of ultrasonic cleaning machines.

2. Working Principles

2.1 Generation of Ultrasonic Waves

Ultrasonic cleaning machines operate based on the generation and propagation of ultrasonic waves, which are sound waves with frequencies higher than the human audible range (above 20 kHz). These waves are typically produced by piezoelectric transducers. Piezoelectric materials, such as quartz crystals or ceramic composites, have the unique property of converting electrical energy into mechanical vibrations when an electric field is applied. In an ultrasonic cleaning machine, an ultrasonic generator supplies an alternating electrical signal to the piezoelectric transducers installed on the base or sides of the cleaning tank. The transducers then vibrate at high frequencies, generating ultrasonic waves that propagate through the cleaning liquid.

2.2 Cavitation Effect

The most critical mechanism in ultrasonic cleaning is the cavitation effect. As ultrasonic waves travel through the cleaning liquid, they create regions of alternating high and low pressure. During the low - pressure phase, tiny bubbles, or cavities, form in the liquid. These bubbles grow as more liquid vaporizes into them. When the high - pressure phase follows, the bubbles collapse violently in a fraction of a second. This rapid collapse generates intense shockwaves and micro - jets with extremely high temperatures (temporarily reaching several thousand degrees Celsius) and pressures (up to thousands of atmospheres) at the bubble interface. These shockwaves and micro - jets act as a powerful cleaning force, dislodging and removing dirt, grease, oil, and other contaminants from the surfaces of objects immersed in the cleaning liquid.

2.3 Interaction with Contaminants

The shockwaves and micro - jets from cavitation penetrate even the tiniest crevices, pores, and blind holes of objects, effectively breaking down and detaching contaminants. For organic contaminants like oils and greases, the mechanical force of cavitation disrupts the molecular bonds holding the contaminants together, causing them to disperse in the cleaning liquid. In the case of inorganic contaminants such as rust, scale, or metal oxides, the impact of cavitation can chip away at these deposits, facilitating their removal. Additionally, ultrasonic cleaning can enhance the effectiveness of cleaning agents. When cleaning solutions containing surfactants, solvents, or other chemicals are used, the cavitation effect helps to mix and distribute the cleaning agents more evenly, promoting better chemical reactions with the contaminants and further improving the cleaning performance.

3. Structural Components

3.1 Ultrasonic Generator

The ultrasonic generator is the power source of the cleaning machine. It converts standard electrical power (usually from the mains) into high - frequency electrical signals suitable for driving the piezoelectric transducers. Modern ultrasonic generators often incorporate advanced control features, such as variable frequency adjustment, power regulation, and time - setting functions. Variable frequency control allows the operator to select the optimal ultrasonic frequency for different cleaning tasks, as different frequencies can have varying effects on the cavitation intensity and the types of contaminants being removed. Power regulation enables users to adjust the strength of the ultrasonic waves, which is useful for delicate objects that may be damaged by overly intense cleaning or for tough - to - remove contaminants that require more power.

3.2 Piezoelectric Transducers

As mentioned earlier, piezoelectric transducers are responsible for converting electrical energy into ultrasonic vibrations. They are typically bonded or mounted onto the exterior surface of the cleaning tank. The number and arrangement of transducers can vary depending on the size and design of the tank. Larger tanks may require multiple transducers to ensure uniform distribution of ultrasonic waves throughout the cleaning liquid. High - quality transducers are essential for efficient energy conversion and long - term reliability of the ultrasonic cleaning machine. They must be able to withstand the mechanical stresses and chemical exposure associated with the cleaning process.

3.3 Cleaning Tank

The cleaning tank serves as the container for holding the cleaning liquid and the objects to be cleaned. It is usually made of materials such as stainless steel, which offers excellent corrosion resistance and durability. The shape and size of the tank can vary widely, ranging from small tabletop models suitable for cleaning jewelry or small electronic components to large industrial - sized tanks capable of accommodating heavy machinery parts. Some tanks may have additional features, such as heating elements to raise the temperature of the cleaning liquid. Increasing the temperature can enhance the cleaning performance, as it improves the solubility of contaminants and the activity of cleaning agents. However, care must be taken not to exceed the temperature limits of the objects being cleaned or the cleaning liquid itself.

3.4 Circulation and Filtration System

In more advanced ultrasonic cleaning machines, a circulation and filtration system is included. The circulation pump continuously circulates the cleaning liquid within the tank, ensuring that fresh cleaning liquid reaches all parts of the objects being cleaned. This helps to remove the dissolved or dislodged contaminants from the vicinity of the objects, preventing redeposition. The filtration system, which may consist of various types of filters such as mesh filters, activated carbon filters, or cartridge filters, removes solid particles and debris from the cleaning liquid. By keeping the cleaning liquid clean, the filtration system extends the lifespan of the cleaning liquid and improves the overall cleaning efficiency of the machine.

4. Applications

4.1 Electronics Industry

In the electronics sector, ultrasonic cleaning machines are extensively used for cleaning printed circuit boards (PCBs), semiconductor wafers, and electronic components. The high precision of ultrasonic cleaning ensures that even the tiniest contaminants, such as flux residues from soldering, dust particles, and organic impurities, are removed without damaging the delicate circuitry or components. This is crucial for maintaining the performance and reliability of electronic devices, as any residual contaminants can lead to electrical failures or short - circuits.

4.2 Jewelry and Watchmaking

Jewelry and watch components often have intricate designs with many small crevices and hard - to - reach areas. Ultrasonic cleaning is ideal for these items as it can thoroughly clean them, removing dirt, grime, body oils, and polishing compounds. It restores the shine and luster of precious metals and gemstones without the need for harsh scrubbing that could scratch the surfaces. In watchmaking, ultrasonic cleaning is used to clean watch movements, ensuring smooth operation and extending the lifespan of the timepieces.

4.3 Medical and Dental Fields

In the medical and dental industries, ultrasonic cleaning machines are employed to clean surgical instruments, dental tools, and laboratory equipment. The thorough cleaning provided by ultrasonic waves helps to remove blood, tissue residues, and biological contaminants, ensuring that the instruments are properly sanitized before sterilization. This is essential for preventing the spread of infections and maintaining high standards of hygiene in healthcare settings.

4.4 Automotive and Aerospace Industries

In the automotive and aerospace sectors, ultrasonic cleaning is used to clean engine parts, fuel injectors, turbine blades, and other components. These parts often accumulate grease, oil, carbon deposits, and metallic debris during operation. Ultrasonic cleaning can effectively remove these contaminants, restoring the performance and efficiency of the components. It also helps in reducing maintenance costs and downtime by extending the service life of the parts.

5. Advantages

5.1 High Cleaning Efficiency

Ultrasonic cleaning can achieve a high level of cleanliness in a relatively short period. The cavitation effect allows for deep - reaching and thorough cleaning, even in complex geometries that are difficult to access by traditional cleaning methods.

5.2 Non - abrasive

Since ultrasonic cleaning relies on the mechanical action of cavitation rather than physical abrasion, it is gentle on the surfaces of objects. This makes it suitable for cleaning delicate or fragile items without causing damage.

5.3 Versatility

Ultrasonic cleaning machines can be used with a wide variety of cleaning liquids, including water - based solutions, solvents, and specialized cleaning agents. This versatility allows them to handle different types of contaminants and objects, making them applicable across multiple industries.

5.4 Automation

Many ultrasonic cleaning machines can be automated, with programmable settings for cleaning time, power level, and temperature. This automation reduces the need for manual labor, increases productivity, and ensures consistent cleaning results.

6. Challenges

6.1 Cost

The initial investment in an ultrasonic cleaning machine, especially larger industrial models with advanced features, can be relatively high. Additionally, the cost of cleaning agents, maintenance, and replacement parts can add to the overall expense over time.

6.2 Noise

Ultrasonic cleaning machines can generate significant noise during operation, primarily due to the cavitation process. Although the ultrasonic waves themselves are inaudible, the collapsing bubbles produce audible noise, which can be a nuisance in some working environments.

6.3 Limited Penetration in Some Materials

While ultrasonic waves can penetrate most materials to some extent, certain materials with high acoustic impedance or thick, dense structures may limit the effectiveness of the cleaning. In such cases, additional cleaning methods or pre - treatment steps may be required.

7. Future Trends

7.1 Integration of Smart Technologies

The future of ultrasonic cleaning machines will likely involve the integration of smart technologies such as the Internet of Things (IoT) and artificial intelligence (AI). IoT - enabled machines can be remotely monitored and controlled, allowing for real - time adjustment of cleaning parameters and predictive maintenance. AI algorithms can analyze data from sensors within the machine to optimize the cleaning process based on the type of objects and contaminants, further enhancing cleaning efficiency.

7.2 Development of Green Cleaning Solutions

With growing environmental concerns, there is a trend towards developing more environmentally friendly cleaning agents for use with ultrasonic cleaning machines. These green cleaning solutions aim to reduce the use of hazardous chemicals, minimize waste, and have a lower impact on the environment while still maintaining high cleaning performance.

7.3 Miniaturization and Portable Designs

For applications in fields such as field maintenance, research laboratories, and home use, there is a demand for smaller, more portable ultrasonic cleaning machines. Miniaturization of components and innovative designs will make these machines more accessible and convenient for a wider range of users.

In conclusion, ultrasonic cleaning machines have revolutionized the cleaning industry with their unique cleaning principles and wide - ranging applications. Despite facing some challenges, ongoing technological advancements are expected to further enhance their capabilities and expand their use in the future, making them an even more essential part of modern manufacturing, healthcare, and various other sectors.
